48CDF104

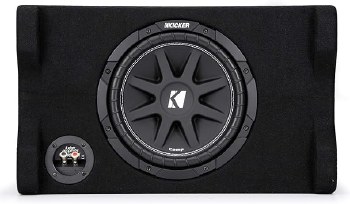

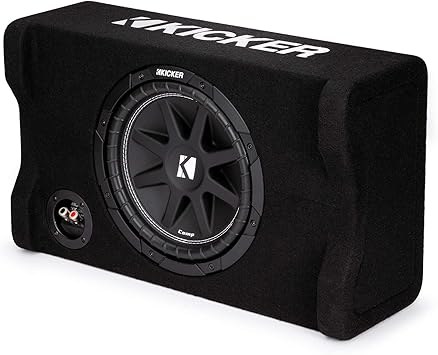

Comp Woofer: The Kicker 48CDF104 enclosure is loaded with one 10" Comp series subwoofer. The Kicker subwoofer features a stiff injection-molded polypropylene cone with 360-degree back bracing. The ribbed, UV-treated surround and cone are attached using Kicker's signature white double stitching, providing an outstanding bond. Perimeter venting allows air to move freely around the motor for excellent heat management, and a bumped backplate allows the high-temperature voice coil to travel further, providing deep bass without distortion.

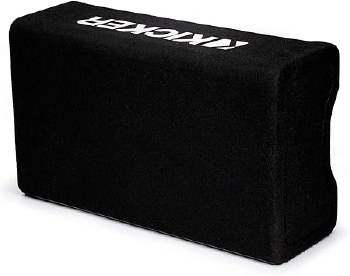

Down-Firing Enclosure: The sealed down-firing enclosure is made of heavy-duty MDF (Medium Density Fiberboard) with extensive internal bracing, providing exceptional acoustic efficiency and deep powerful bass. The enclosure is covered in sleek black carpeting for added protection and a refined look. Its compact, down-firing form allows it to be mounted in cargo areas, or under seats.

Speaker Terminals: A single pair of spring-posts are mounted on the underside of the enclosure in a recessed terminal cup, and will accept pin connectors, single banana plugs, or bare wire up to 10 gauge.

Power: The single 4Ω Comp subwoofer can handle 75W-150W RMS (300W peak).

Break-in Period: Due to the complex nature of Kicker Comp speakers, they require a break-in period in order to produce optimum low-bass response. The suspension system is very stiff out-of-the-box. Approximately two weeks of daily playing will allow the suspension to break-in and reach its optimum equilibrium. Once broken-in, the subwoofer will exhibit stronger bass performance, smoother response, and greater low-bass extension.

• sealed downward-firing enclosure with one 10" Comp subwoofer
• 3/4" medium-density fiberboard construction covered with carpet
• 4-ohm total impedance
• power handling: 150 watts RMS (300 watts peak)
• frequency response: 30-500 Hz
• sensitivity: 90.8 dB
• dimensions: 20.88"W x 7.25"H x 12.38"D
