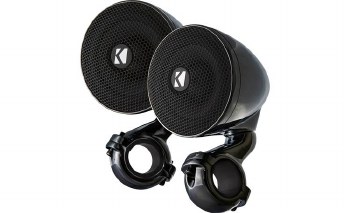

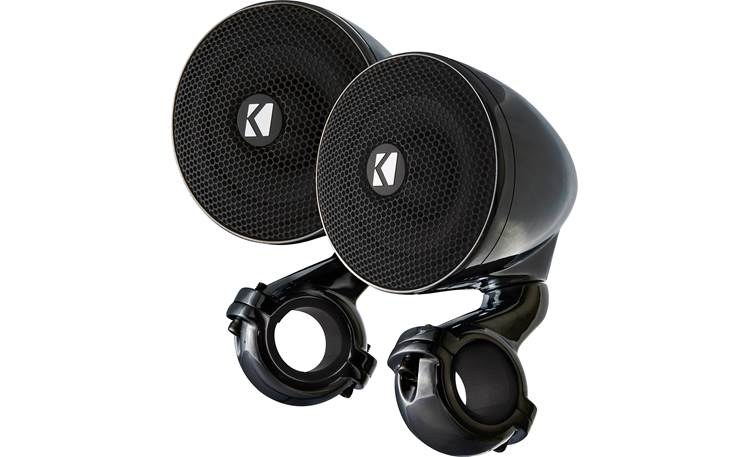

47PSMB34

Driver & Enclosure: The Kicker 47PSMB34 enclosed speakers feature a 3" full-range driver housed in a sealed ABS, pod-style enclosure, and are designed for all-weather use. Each 4Ω speaker is rated for 50W RMS (100W peak).

Mounting: Designed for mounting on ATV and motorcycle handlebars (non-fairing), the 47PSMB34 speakers include a pre-installed mounting arm and clamp. Two sizes of rubber shims allow the speakers to be mounted to handlebars 7/8", 1", and 1-1/4" in diameter. A single M8x20 screw in the base of each speaker can be loosened, allowing it to swiveled up to 360˚. An M5x40 screw in the rear of each speaker can be loosened, allowing the driver and grille to be rotated ±45˚ for proper orientation of the front Kicker logo badge.

Wiring: The 47PSMB34 speaker enclosures feature a built-in 6' length of 18 ga. speaker wire. Each of the two conductors is coated with a translucent insulator - Blue: positive (+), Clear: negative (-), and are sheathed in an outer PVC jacket for added protection.

• two weather-resistant speaker enclosures
• rugged, all-weather black finish
• each enclosure houses a 3" full-range driver
• includes built-in weather-resistant speaker wire and adjustable clamps for mounting on 7/8", 1", or 1-1/4" handlebars
• recommended power: 50 watts RMS (100 watts peak power)
• frequency response: 100-15,000 Hz
• sensitivity: 85 dB
• impedance: 4 ohms
• dimensions: 3-3/8"W x 5-5/8"H x 3-7/8"D
