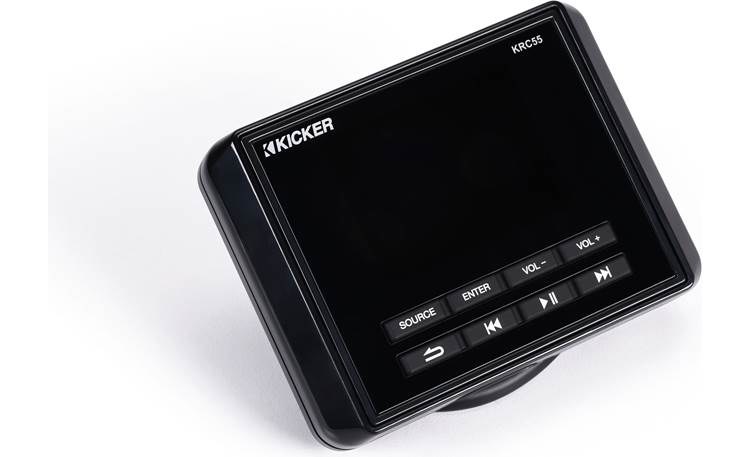

47KRC55

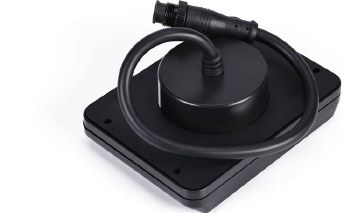

Marine Wired Remote Controller: The Kicker 47KRC55 marine wired remote contoller is compatible with Kicker's 46KMC5 marine digital media receiver. The cable attached to the 47KRC55 marine wried remote controller is only 10" in length, so you'll also need Kicker's KRCEXT25 extension cable (sold separately) that is 25' in length.

IP67 Rating: The Kicker 47KRC55 wired remote controller features a water-resistant design with an IP67 rating so it can hold up to harsh marine environment.

2.5" LCD Screen: The Kicker 47KRC55 marine wired remote cotnroller features a 2.5" full-color LCD screen which supports song/artist/album information (no album art).

Push-Button Controls: The Kicker 47KRC55 features 8 push-buttons along its front-panel for operation of the connected Kicker 46KMC5 marine digital media receiver. Control functions include Source/Power, Enter/Select Back/Return, Volume Up, Volume Down, Previous Track/Tune Down, and Nex Track/Tune Up.

Mounting Options: The 47KRC55 marine wired remote requires circular cutout that measure 2.0" (diameter) x 1.75" (depth). Its secures to the mounting surface using 4 included screws. A trim-ring is provide to cover the screw holes for neat and professional looking installation.

• Cutout Dimensions: 2.0" (diameter) x 1.75" (depth)
• Front-Panel Dimensions: 4.0" (width) x 3.0" (height) x 0.75" (depth)
• Screw Hole Dimensions: 3.5" (wide) x 1.75" (height) x 1.0" (depth)

Optional Y-Cable: Use the Kicker KRCY1 Y-Cable (sold separately) to add two 46KRC55 marine wired remotes to one Kicker 46KMC5 marine digital media receiver. You'll also need two of the Kicker KRCEXT25 extension cables (sold separately).

• controls Kicker KMC5 marine receivers
• 2.5" color LCD display
• IP67 water-resistant
• perfect for swim decks and seating areas
• dimensions: 4" x 3"
• mounting hole diameter: 2" (1-3/4" depth)
• protrusion from mounting surface: 11/16"
• includes removable snap-on trim ring
• mounting hardware included
