46PK4

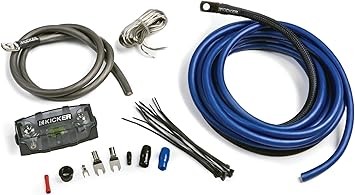

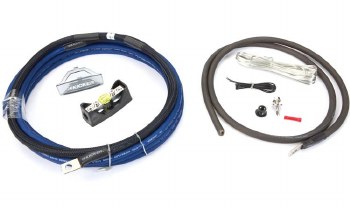

Overview: The Kicker PK4 amplifier wiring kit includes the power, ground, and remote cables, as well as the accessories you'll need for installing a single amplifier. This amp kit includes the following:

• Power Wire: This 17' 4-gauge Kicker full-spec power cable features cobalt blue Virgin Hyper-Flex PVC insulation. The cable features 1862 strands of 100% oxygen-free copper (OFC) to give you more voltage to your amplifier, compared to the less expensive Copper-Clad Aluminum (CCA) wire used by some manufacturers. More voltage in means more power output from your amplifier. The Hyper-Flex jacket is built to resist temperature extremes and exposure to oil and gas. The power wire has a ring terminal on one end, with a braided protective sleeve over the first 4 feet of cable. The cable is marked for cutting to install the included fuse holder. It is CEA-2015 and BC5W2 compliant.
• Ground Wire: The 4' 4-gauge Kicker ground cable has the same specs as the power wire, but with a gray Hyper-Flex jacket. It has a ring terminal installed on one end.
• Remote Wire: The 17-foot silver remote wire contains 16-gauge stranded wire, and comes in a sleek clear jacket.
• Fuse Holder: The Kicker FHS fuse holder installs on the power wire within 18" of the battery. The fuse holder features brass hardware and will accept up to 4-gauge wire. The wires and fuse are held in place with set screws that require a 3mm hex bit or Allen wrench (not included). The fuse holder has a 100-amp AFS fuse installed. Dimensions: Width 1.35", Height 1.316", Length 3.117".
• Installation Accessories: The PK4 amp wiring kit includes the following accessories needed for the installation:
  • Self-tapping Grounding Bolt: You'll need to sand a 1/2" diameter area to bare metal for the grounding point. The 1" long self-tapping ground bolt secures the ground cable's ring terminal to the vehicle's metal chassis. A flat washer is also included.
  • Firewall Grommet: This plastic grommet protects the power wire as it passes from the engine compartment through the firewall. It keeps any sharp edges from cutting through the power cable's jacket and causing a short.
  • Butt Connector: The included crimp-type butt connector allows you to splice the head unit's remote (turn-on) wire to the included remote wire. The connector fits 18-22 gauge wires.
  • Wire Ties: Six 6" wire ties ("zip ties") are included for securing wires, keeping them out of the way for a clean install.

Note: This kit does not include an audio interconnect (RCA) cable or speaker wire.

• amplifier wiring kit
  • cables meet or exceed the American Wire Gauge specifications and requirements
• 17 feet of blue 4-gauge power cable with attached ring terminal and protective wire loom
• 4 feet of gray 4-gauge ground cable with attached ring terminal
• 17 feet of clear 16-gauge turn-on lead wire
• AFS fuse holder and 100-amp fuse
• assortment of installation hardware and cable ties
• extends your Kicker amplifier's warranty by one year, if purchased along with the amp
