46HDBL69

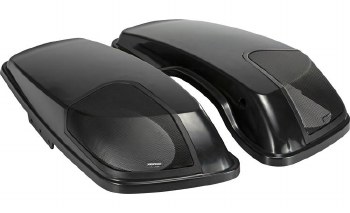

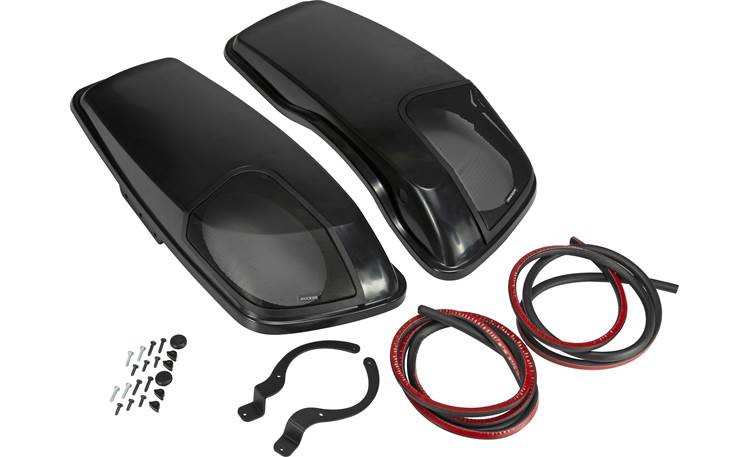

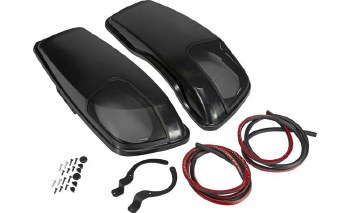

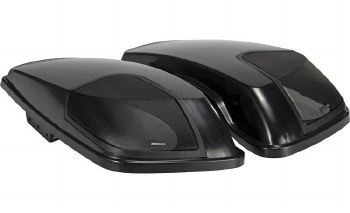

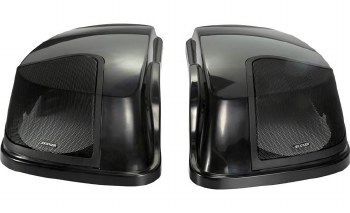

Baglids: The Kicker 46HDBL69 Harley-Davidson Bag Lid kit lets you add a pair of Kicker PS69 6x9" speakers to your 2014-up Harley-Davidson saddle bags. The 46HDBL69 has been engineered for superior durability and sound quality, and includes gasket material, metal-mesh grilles, along with mounting hardware. The bag lids feature a smooth, black primered finish that can be used as is, or can be painted to match your bike. The 46HDBL69 lets you use your existing bag hardware and locks (if present).

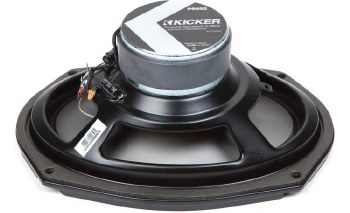

PS69 Speakers (40PS692): The Kicker PS69 (PowerSports Series) speakers are designed to be thoroughly weather-proof, making them ideal for motorcycle bag-lid installation. As the largest speakers in the Powersports line, the PS69s use heavy-duty ceramic magnets to handle more power and reproduce clear music at loud volumes to overcome the noise generated at highway speeds. The PS69 speakers are 2Ω, so they are compatible with upgraded amps and offer maximum power output. Designed as high-efficiency speakers, the PS69s provide sound quality without over taxing the vehicle's electrical system.

• Note: The factory radio will need to be "flashed" by an authorized Harley-Davidson dealer or with the optional TRHDP programmer (sold separately) to recognize the new rear speakers, if none were present originally.

Compatibility: 2014-up Harley-Davidson with factory saddle bags.

Wiring: The Kicker 46HDBL69 Bag Lid kit includes a 5.5' speaker harness that plugs into the factory 4-pin harness underneath the seat. Pre-loomed left and right speaker wires get run to each saddle bag and include pre-crimped female slip-on terminals for attaching to each speaker. Included wire ties and adhesive wire-tie mounts let you secure each speaker wire in place.

• loaded bag lids for 2014-up Harley-Davidson motorcycles
• includes Kicker PS-Series 6"x9" speakers
• top-mount speaker location
• custom-tooled speaker nuts hold speaker in place
• pre-terminated and loomed speaker wire included
• designed with built-in water drain
• surface can be painted to match your motorcycle
• underhung bracketing joins bag and speaker mount
• works with existing bag hardware and locks

Support

Manuals

46HDBL69 | Download

Do you have a different model? Click Here

Support Links

Subwoofer / Speaker FAQ
