43DSC6504

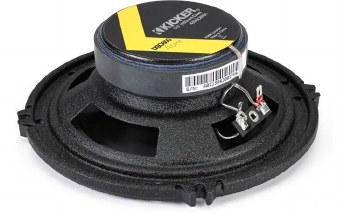

Polypropylene Woofer Cones: The Kicker DS-series speakers feature durable polypropylene woofer cones for their rigidity and light weight. Polypropylene is also resistant to moisture and high temperature extremes found in automotive applications.

Ribbed Polyester Foam Surrounds: The ribbed polyester foam surrounds allow extended cone excursion for additional bass output and higher SPL.

Balanced-Dome Tweeters: The 1/2" PEI (Poly-Ether-Imide, polymer film) balanced-dome tweeters provide a smooth high frequency response with quick, detailed and spatially-correct imaging. A semi-dome tweeter has a dome placed inside a cone; balanced dome tweeters are semi-dome tweeters with equal reproduction area given the cone and dome portions of the tweeter.

Mounting: The speaker baskets have multiple mounting holes and are designed to fit standard 3-hole 6-1/2" applications and Ford's 4-hole 6-1/2" applications. They will also fit many 6-3/4" applications, but a speaker baffle should be used to seal the inner ring of screw holes.

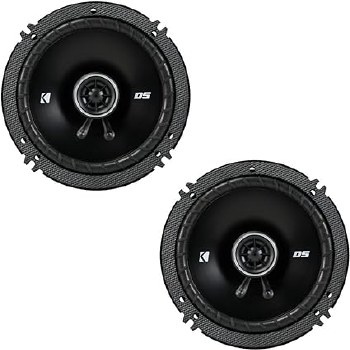

• 2-way car speakers (pair)
• 6-1/2" polypropylene woofer with ribbed polyester foam surround
• 1/2" PEI balanced dome tweeter
• power range: handles up to 60 watts RMS (240 watts peak power)
• frequency range: 40-20,000 Hz
• sensitivity: 90 dB
• top-mount depth: 1-13/16"
• impedance: 4 ohms

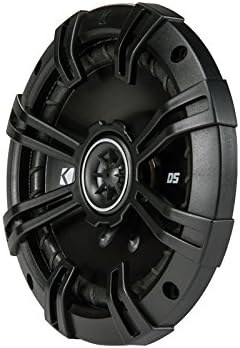

• grilles included
