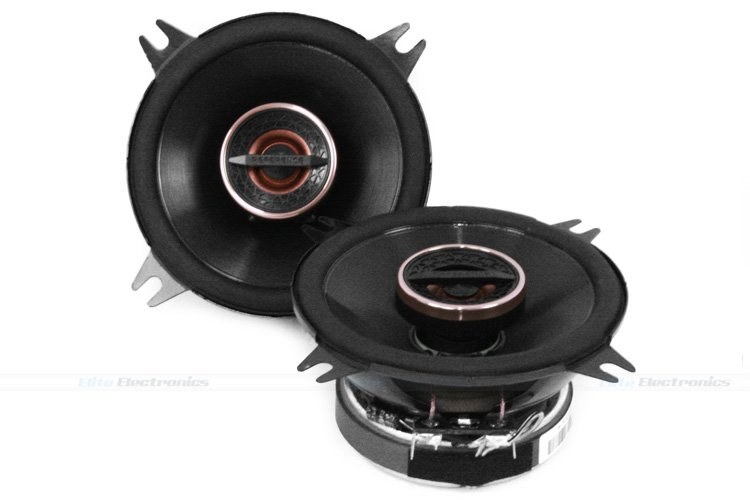

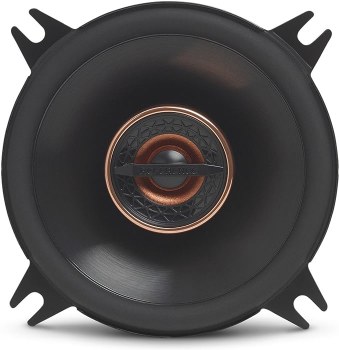

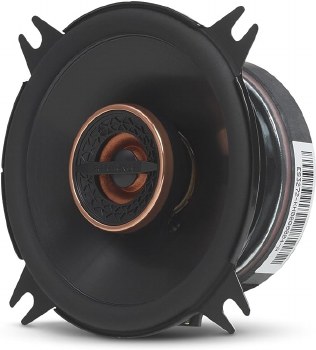

4032CFX COAXIAL SPEAKERS

Edge-driven, textile tweeters

The audiophile-grade tweeters used in Infinity's new Reference speakers deliver smooth, non-fatiguing sound even at high output levels.

Adjustable tweeter output level

The larger Reference multielement and component systems offer a tweeter output level control to optimize system linearity to suit installation location or the listener's preference.

Plus One™ woofer cone architecture

Harman’s patented (US patent #7,548,631) Plus One™ cones provide more overall speaker-cone area than other cones in its class — the result is higher sensitivity, increased low-frequency output and accurate music reproduction.

Optimized Frame Size

Reference speakers are available in a range of standard sizes, and feature a compact design that allows them to fit just about any vehicle on the road today.

Competitive pricing

Reference speakers provide step-up Infinity sound at mainstream prices.

Description

4" (100mm) coaxial car speaker

Power Handling

35W RMS, 105W peak

Sensitivity (@ 2.83V)

92dB

Frequency Response

75Hz – 21kHz

Impedance

3.0 ohms
