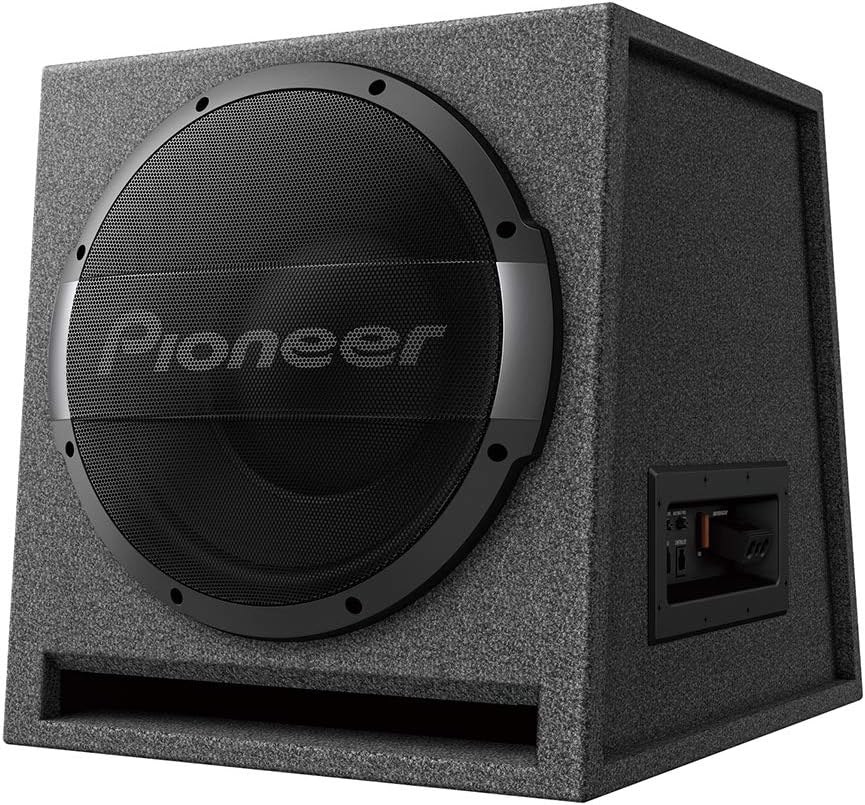

PIONEER
TS-WX1210AH
12" Ported Enclosure Active Subwoofer with Built-in Amplifier, 1,500W Max. 500W Nom. Power (Sub)
600W Max. 300W Nom. Power (Amp), Bass Knob Included
600W Max. 300W Nom. Power (Amp), Bass Knob Included
- 1,500W Max. 500W Nom. Power (Sub)
- 600W Max. 300W Nom. Power (Amp)
- Dual Voice Coil
- Dimensions: 14-5/8" x 18-1/8" x 15-3/4"
- Remote Control Included
- System Type Powered
- Sensitivity (1W/1m) 89 dB
- Frequency Range 20 Hz to 2.9 kHz
- CTA-2031 Compliant Yes
- Warranty 1 Year
- Continuous Power handling (RMS) - Watts 500 Watts
- Maximum Peak Power Handling - Watts 1500 Watts
- Speaker Grill Fully Covered Steel Mesh Grille
- Bass Boost Frequency 40Hz to 100Hz
- Bass Boost Level 0 to +12 dB
- Built In Amp: Yes
- Amp Max Power Output: 600 Watts
- Amp RMS Output: 300 Watts
- Input Level (@ Gain Max) RCA: 100 mV+100 mV/22 kOhm
- Input Level (@ Gain Max) Speaker Line: 2 V+2 V/5 kOhm
- Power Source: Dc 14.4 V
- Amp Max Current Consumption: 25 A
- Amp Grounding: Negative
BUILD
- Shape: Round
- Size: 12"
- Cone Material: Cellulose fiber
- Center Cap Material: PP
- Surround Material: Urethane
- Surround Type: Rolled
- Basket Material: Stamped Metal
- Magnet Material: Ferrite
- Magnet Weight: 42.3oz
- Voice Coil Type: Single Voice
- Voice Coil Bobbin: Kapton
- Voice Coil wire: Copper
- Damper: Aramid
- Gasket: ABS
