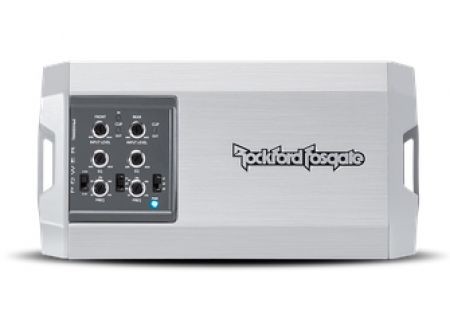

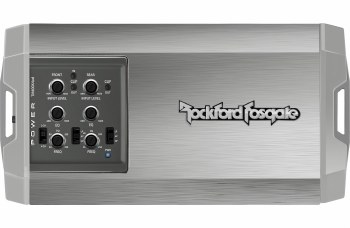

TM400X4AD
100x4 @ 4O, 100x4 @ 2O, 200x2 @ 4O bridged
- 8 AWG power/ground connector w/ upgraded RCA connectors
- Rockford Fosgate proprietary Class AD technology
- Differential inputs with high level auto turn-on feature
- Remote-Out feature when using high level inputs
- C.L.E.A.N. input/output clip detection and indicator LEDs
- Top mounted controls
- 4/2 Ohm muti-impedance Constant Power
- 2/4 channel input switch
- Discrete surface mount technology
- Dual extruded heat sinks
- Real time thermal sensing
- Dual fan cooled
- 4 Ohm bridged capable
- Marine grade two part epoxy coating on circuit boards
- 2-Year Warranty
Cta-2006 Compliant
Number of Channels4
- Total Power
(Sum of Rated Power)400 Watts
- Rated Power
(RMS Continuous Power)100 Watts x 4 @ 4-Ohm
100 Watts x 4 @ 2-Ohm
200 Watts x 2 @ 4-Ohm Bridged
- Dynamic Power
(PVC/PowerCube®)128 Watts x 4 @ 4-Ohm
152 Watts x 4 @ 2-Ohm
290 Watts x 2 @ 4-Ohm Bridged
BridgeableYes
Front Terminals: Left (+) Right (-)
Rear Terminals: Left (+) Right (-)
Frequency Response20Hz-20kHz +/-1dB
Input Sensitivity150 mV to 12 V
Circuit Topology ClassClass AD
Efficiency (average)>75%
Total Harmonic Distortion (THD+Noise)4-Ohm: <1.0%
2-Ohm: <1.0%
Signal InputFront High/Low Level Input: 4-Pin harness
Rear High/Low Level Input: 4-Pin harness
Signal Output—
Tone ControlsTreble: 0 to +14 dB @ 12.5 kHz
Bass: 0 to +18 dB @ 45 Hz
Crossover ControlsHigh-Pass:
50Hz-250Hz @ 12dB/Octave Butterworth
- Low-Pass:
50Hz-250Hz @ 12dB/Octave Butterworth
All-Pass: Yes
Remote Controls—
Visual IndicatorsPower: Blue LED
Protect: Red LED
Input Clip: Red LED3
Output Clip: Blue/Violet/Red LED1,2,3
- LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Power Wire Gauge8 AWG

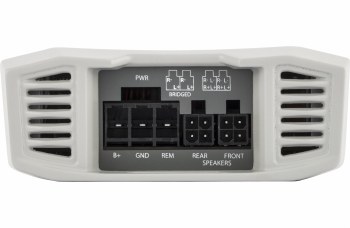

Power Input ConnectorDetachable Compression Terminal
Replacement 1040-57997
Speaker Wire Gauge16 AWG
Speaker Output ConnectorFront: 4-Pin Harness
Rear: 4-Pin Harness
CoolingDual Fan Cooled
HeatsinkExtruded Aluminum
Operating Voltage9 - 16 VDC
Recommended Fuse
(not included)60 A
Average Current Draw (13.8V Music)28 A
Max. Current Draw (13.8V Sinewave)55 A
Suggested Alternator75 A
Included In The Box
- Dimensions
(H x W x D)1.6 x 4.3 x 8.3 (in.)
4.1 x 10.8 x 21.1 (cm)
Shipping Weight3.4 Lbs. (1.54 Kg.)
