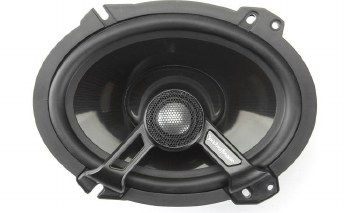

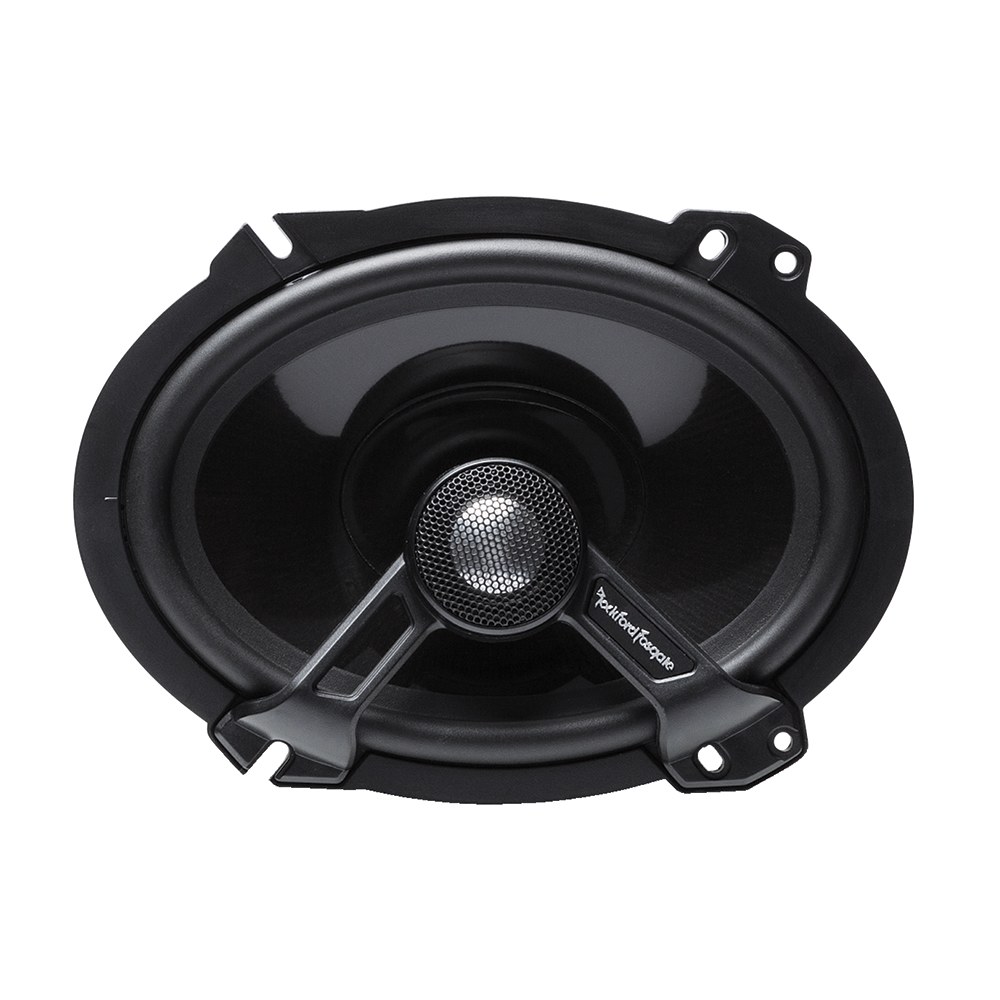

T1682

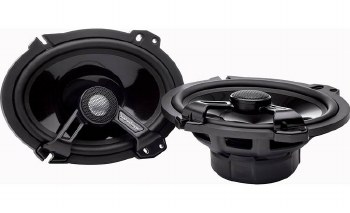

• 2-way 6"x8" speakers (pair)
• carbon fiber and polypropylene woofer with butyl rubber surround
• 1" aluminum dome tweeter
• Vertical Attach Surround Technique (VAST™) increases cone area
• power range: 10-80 watts RMS (160 watts peak power)
• frequency response: 55-22,000 Hz
• sensitivity: 88 dB
• top-mount depth: 2-5/8"
• grilles not included
• warranty: 1 year
• 60-day returns
• MFR # T1682

• Speaker Size    6X8
• Design    2-way
• Tweeter Design    1" Dome
• Impedance (Ohms)    4
• Tweeter Composition    Aluminum
• Woofer Composition    Carbon Fiber/Poly
• Woofer Surround    Butyl Rubber
• Parts Warranty    1 Year
• Labor Warranty    1 Year
• Specifications
• Sensitivity (1W at 1 meter)    88
• Sensitivity at 2.83 volts    91
• Frequency Response    55 - 22k Hz
• Minimum RMS Wattage    24
• Maximum RMS Wattage    80
• Peak Power Handling (Watts)    160
• Top-mount Depth (Inches)    2 9/16
• Bottom-mount Depth (Inches)    N/A
• Cutout Diameter or Length (inches)    0
• Mounting Height (Inches)    1.116

Rockford Fosgate T1682 owner's manual
