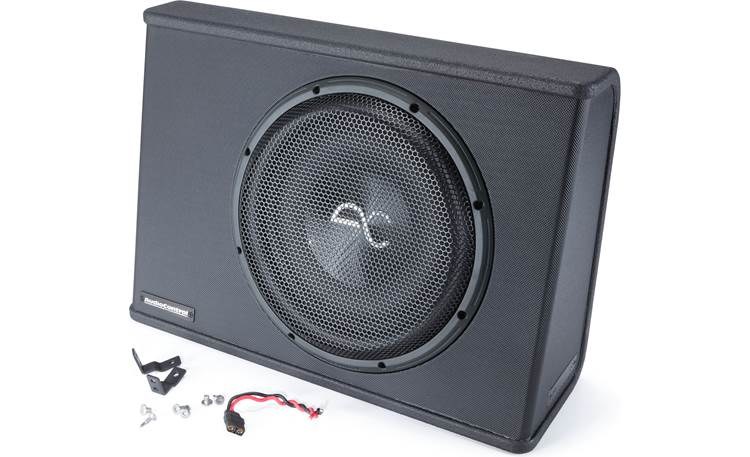

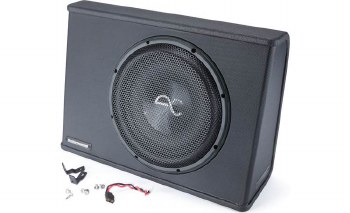

Wedge Enclosure: The Audio Control Space Series SPC-W12 12" Sealed Wedge Enclosure is constructed of high-density wood fiberboard with internal bracing, providing maximum durability and resonance control. A dual-front mounting baffle provides additional strength and rigidity to the enclosure, while keeping the driver firmly in place. The sealed subwoofer enclosure is filled with poly-fiber for controlled sound and tight, accurate bass response. The outside of the SPC-W12 is coated in Roadkill Armor and wrapped in marine-grade vinyl for a sleek finish.

SPC-12S2 Subwoofer: The Audio Control SPC-W12 Sealed Wedge Enclosure is loaded with a single 12" SPC-12S2 subwoofer. The low-profile, shallow-mount driver features a fiber matrix injection-molded polypropylene cone, along with a 2.5" diameter voice coil that features a 3-layer, high-temperature former for maximum efficiency. The SPC-12S2 subwoofer is protected by a removable metal-mesh grille.

Power Handling: Audio Control's power range for the 2-ohm subwoofer is 200-400W RMS (400W recommended); 600W peak power.

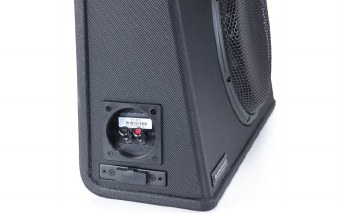

Connections: The SPC-W12 features two connection methods:

• Spring Posts: A pair of spring posts can accept speaker wire up to 8-gauge in size.
• Quick-Plug Harness: A removable 6" 2-pin harness, with bare-ended 12-gauge wires, provides a quick-connection method that can easily be plugged and unplugged from the enclosure.

Mounting: Two mounting brackets, left and right, are provided. Threaded holes on either side of the enclosure let you attach each bracket using the provided machine screws. Additional self-tapping screws can be used for attaching the brackets to a trunk or floor pan.

• Subwoofer Size: 12"
• Frequency Response: 20-150 Hz
• Impedance: 2-ohms
• Sensitivity: 87.4 dB
• Enclosure Type: Sealed (Wedge)
• Power Handling: 200-400W RMS (600W peak)
• Dimensions: 21.13" (w) x 14.63" (h) x 5.75"/7.50" (d)
• Weight: 28.25 lbs.
