R2-500X1

• Variable Input Gain adjustment level
• High Level Input Capable
• Balanced Differential Inputs with RCA Pass Through Outputs
• Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)

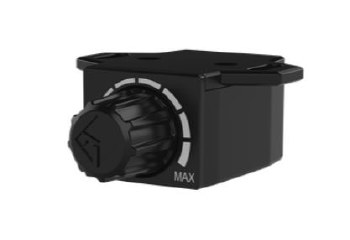

• Includes RLC Remote Level Control

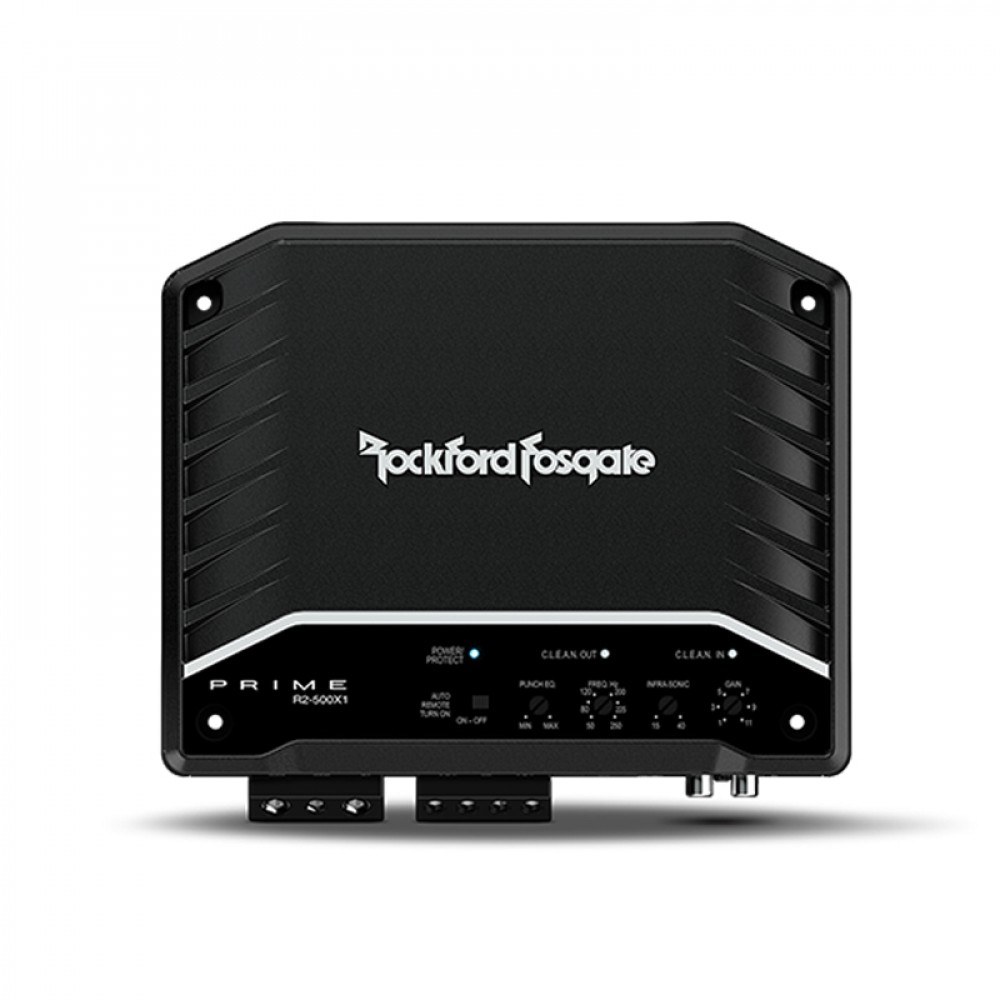

• Top Mounted Control Panel
• Features C.L.E.A.N. Set-up
• Variable Infrasonic Filter
• Short Circuit & Over Current Protection
• Cast aluminum heat sink
• Continuously Variable On Board Punch EQ
• Rollback Protection
• CEA-2006 Compliant & CE Compliant
• Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
• Class-D Topology
• 1 Year Warranty

• Cta-2006 Compliant
• Number of Channels 1

Total Power

• (Sum of Rated Power)500 Watts

Rated Power

• (RMS Continuous Power)300 Watts x 1 @ 4Ω
• 500 Watts x 1 @ 2Ω

Dynamic Power

• (PVC/PowerCube®)350 Watts x 1 @ 4Ω
• 590 Watts x 1 @ 2Ω
• BridgeableNo
• Frequency Response20 Hz - 250 Hz
• Input SensitivityLow-Level: 150 mV - 4 V
• High-Level: 450 mV - 12 V
• Circuit Topology ClassClass-D
• Efficiency (average)
• Total Harmonic Distortion (THD+Noise)4Ω: <1.0%
• 2Ω: <1.0%

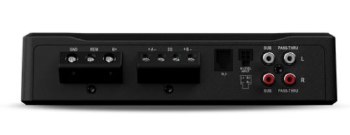

• Signal InputLow-Level: 2 RCA
• High-Level: 4-Pin Molex
• Signal OutputLow-Level: 2 RCA
• (Pass-Thru active with RCA or Hi-Level input)
• Tone Controls0 to +18 dB @ 45 Hz

Crossover ControlsLow-Pass:

• 50 Hz - 250 Hz @ 12dB/Octave Butterworth

Infrasonic:

• 15 Hz - 40 Hz @ 12dB/Octave Butterworth
• Remote ControlsYes
• Visual IndicatorsPower/Protect
• C.L.E.A.N. In
• C.L.E.A.N. Out
• Power Wire Gauge4 AWG
• Power Input ConnectorCompression Terminal Block
• Speaker Wire Gauge8 AWG
• Speaker Output ConnectorCompression Terminal Block
• CoolingConvection
• Heatsink
• Operating Voltage9 - 16 VDC
• Recommended Fuse
• (not included)80 A
• Average Current Draw (13.8V Music)
• Max. Current Draw (13.8V Sinewave)52 A
• Suggested Alternator

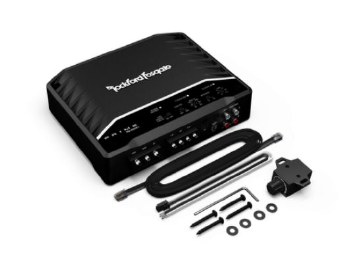

Included In The Box

• Dimensions (H x W x D)1.9" x 6.8" x 8.5"
• (4.9 cm x 17.3 cm x 21.5 cm)
