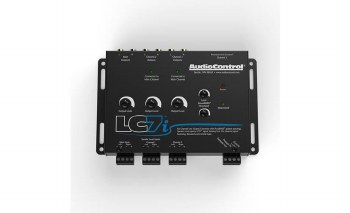

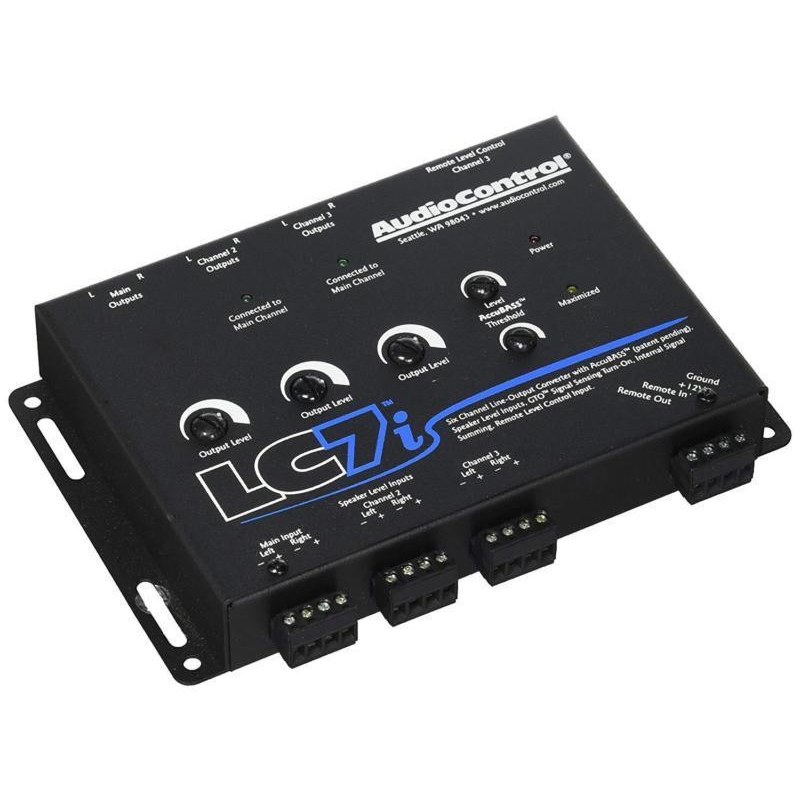

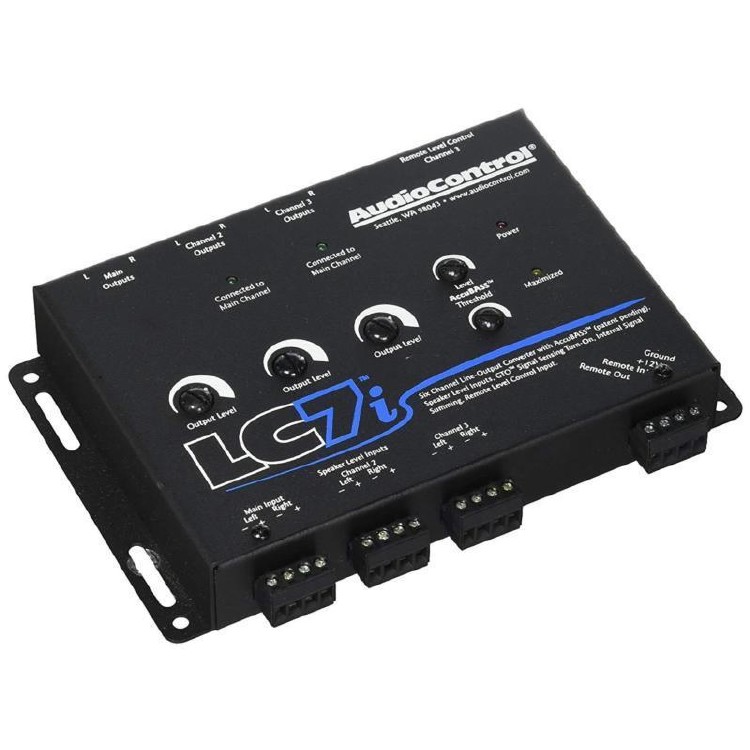

LC7i

• Six channels of active speaker level inputs – accepts up to 400 watts per channel
• Patent Pending AccuBASS™ circuitry
• Optional ACR-1 Remote allows for user control of the subwoofer level
• Internal Channel Summing – For interfacing with factory installed amplifiers with built-in crossovers
• GTO™ (Great Turn-On) Circuit – Powers up the LC7i when it detects signal on the speaker level input
• Output level control
• Compact chassis allowing for ease of installation

inputs

• Speaker Level Inputs: 3 (6 channels)
• Maximum Input (speaker level): 400W per channel at 4Ω
• Input Impedance: 20kΩ

outputs

• Preamp Outputs: 3 (6 channels)
• Maximum Output Level: 8.5Vrms
• Output Gain: ±12dB
• Output Impedance: 150Ω

performance

• Total Harmonic Distortion: 0.01%
• Frequency Response: 10Hz-22kHz

control

• Remote In
• 12VDC Remote Out (always active when unit is on)

general

• Power Supply: High Headroom PWM Switching
• Current Draw: 350mA
• Recommended Fuse Rating: 2A

weights & dimensions

• Dimensions: 7.5”W x 4.7”D x 1.2”H
• Weight: 1.5 lbs (0.7 kg)

in the box: LC7i, Speaker and Power connectors, Manual, Warranty
