KIT-FOC1

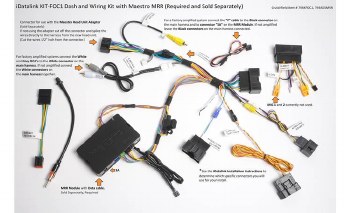

Head Unit Connection: The KIT-FOC1 supports iDatalink's Direct T-Harnesses (sold separately) for direct connection to select iDatalink Serial Port compatible head units (including Kenwood, JVC, Alpine, Sony, and Pioneer radios) - replacing the wiring harness that comes with your aftermarket stereo (some hardwiring may still be required). If connecting to an aftermarket head unit that does not support an iDatalink Direct T-Harness, you'll need to cut off and remove the 20-pin black connector from the KIT-FOC1's harness and splice each wire directly to the aftermarket radio's corresponding wire.

Flashing Module via Weblink Desktop: The iDatalink Maestro RR or RR2 will need to be loaded with correct firmware before installation. The included USB cable plugs into your computer and allows you to "flash" the Maestro RR or RR2 with the appropriate firmware to prepare it for installation. Simply download Weblink Desktop (for Windows and Mac) onto your computer to access the appropriate firmware. System requirements include -

• Windows PC (10/8.1/8/7/Vista/XP/2000) or Mac OS X (Mojave [10.14], HighSierra [10.13], Sierra [10.12], El-Capitan [10.11])
• Available USB port (version 2.0 or 3.0)
• 4GB RAM or more
• 200MB available space on HDD
• Internet connection

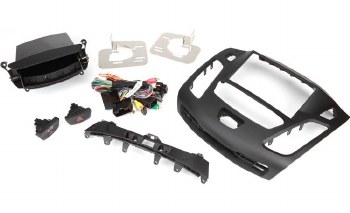

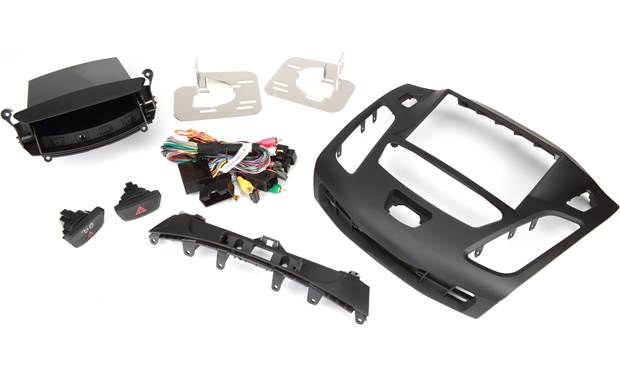

OEM Grade Fit & Finish Kit: The KIT-FOC1 OEM integration kit features a factory grade fit & finish to match the contour and color of your vehicle's dash. In addition, the KIT-FOC1 comes with a convenient storage pocket to keep your smartphone device. The storage pocket includes flush-mounted USB ports (one USB-A and one USB-C), a full-size HDMI port, and a 3.5mm Aux input for your head unit (if applicable). Both USB ports support Apple CarPlay and Android Auto functionality (with compatible headunit and phone).

Retained Features: The follow factory features (if applicable) are retained when replacing your aftermarket head unit with a compatible iDatalink Serial Port head unit from Kenwood, JVC, Alpine, Sony, or Pioneer using the Maestro RR or RR2 Car Radio Replacement Interface module and KIT-FOC installation kit.

• Ford Sync: Retains the Ford Sync system; including Bluetooth hands-free communication and audio streaming, as well as USB media player.
• Factory Amplifier: Retains factory amplifier with with turn-on, balance, & fader.
• Climate Display & Control: Climate display and control can be done through the aftermarket radio's touchscreen monitor.
• Vehicle Settings: Access and modify factory vehicle settings through the compatible aftermarket head unit's touchscreen.
• Secondary Vehicle Display: Secondary vehicle display is retained (if factory equipped) with audio information, hands-free information, and internal navigation.
• Steering Wheel Controls: Factory steering wheel controls are retained with two function buttons and expandable radio functions.
• Advanced Camera Features: Factory backup camera is retainedwith parking guidelines and park assist chimes, as well the factory 360 camera.
• RAP & Warning Chimes: The vehicle's RAP (Retained Accessory Power) & Warning Chimes (external chime module included) are both retained.

Extra Features: The following Extra features are added when replacing your aftermarket head unit with a compatible iDatalink Serial Port head unit from Kenwood, JVC, Pioneer, Sony, or Alpine using the Maestro RR or RR2 Car Radio Replacement Interface module and KIT-FOC1 installation kit.

• Vehicle Info: Tire Pressure Display, Battery Voltage Display, Read/Reset Engine Codes, and Door Open Status with Warning.
• Gauges: Selectable Performance Gauges, "Track Pack" Gauges, and Read/Reset Check Engine Codes.

Outputs: The KIT-FOC1 provides Navigation, Accessory Power, and Illumination Outputs to make installation simpler.

• Navigation: Parking Brake, Reverse Light, and VSS (Vehicle Speed Sense).
• Accessory Power Output: 12V/15A Accessory Power Output
• Illumination Output: Illumination Output

• allows you to install a double-DIN radio in your Ford Focus (also requires the Maestro ADS-MRR module)
• includes dash kit, wiring harness, and other wiring
• retains steering wheel controls and backup camera with any car stereo
• extra features with an iDatalink-compatible radio
  • SYNC (including USB port, Aux input, and Bluetooth)
  • climate control display on touchscreen
  • visual park assist, tire pressure display, voltage display, and more

USER MANUAL

 The iDatalink Maestro KIT-FOC1 consists of an OEM integration dash kit and vehicle harness designed specifically for select 2012-2018 Ford Focus vehicles.
