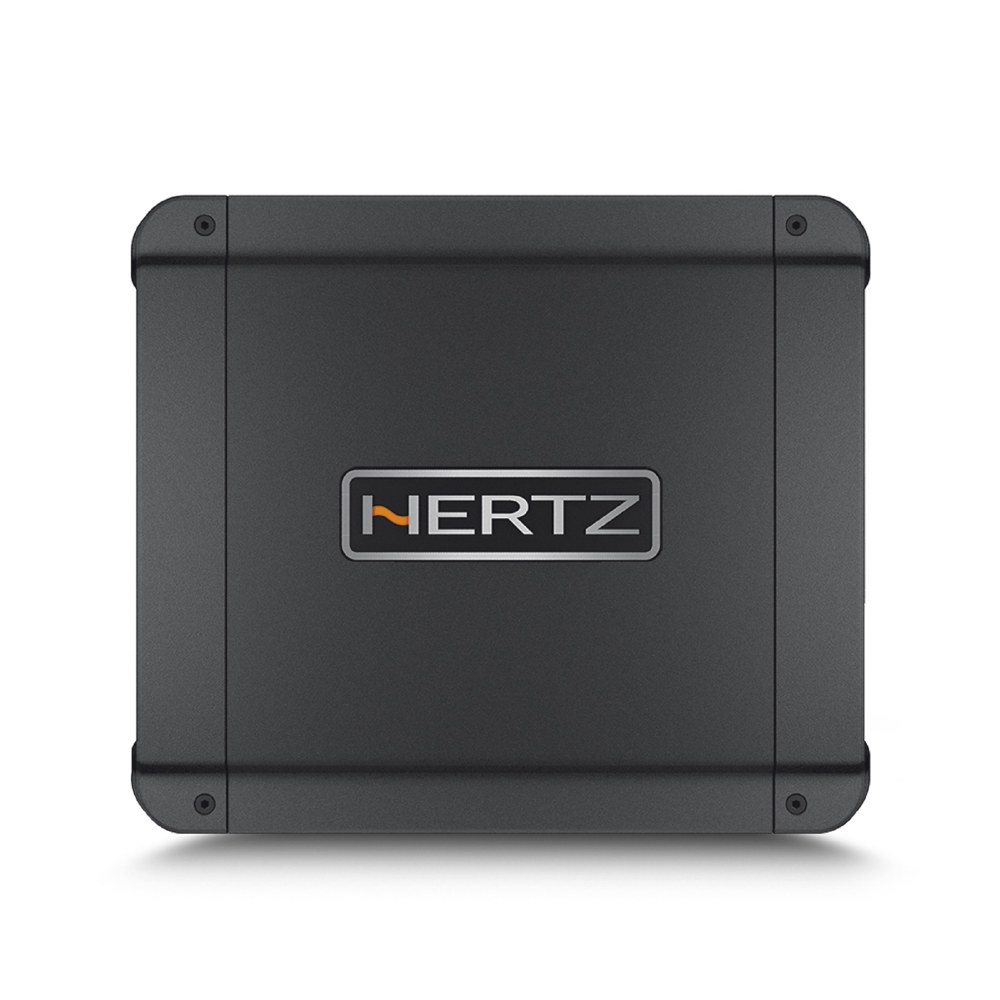

HCP 1D

REFINED HEATSINK WITH HIGH CONVECTION CAPABILITY

• The extruded aluminum heatsink provides high efficiency thermal performance; using the top side of the heatsink to effectively dissipate the heat generated by the electronic components. The internal temperature remains constant at all power levels.

COMPLETED FILTER SECTION

• Large array of filters customized for each model, to achieve maximum versatility: Lo-Pass, Hi-Pass, Band-Pass, Full Range, Subsonic, Bass Boost, Phase and Mono. Filtered pre-amplified outputs along with multiple adjustments are featured on the HCP 1D, offering the user endless connection possibilities with any source.

HCP ELECTRONICS

• Special balanced input circuitry rejects electro-magnetic disturbances present on the Pre-amplified or Speaker level inputs. Power supply stage features a multiple winding transformer and Low-ESR 105°C capacitors, selected to ensure high efficiency and current capability.

ART

• Automatic Remote Turn-On/Off function, automatically turns the amplifier on and off with the OEM radio; eliminates the need for a remote signal from the source when using the Speaker-In. This function can also be disabled.

General Specs

• Channels    1
• POWER SUPPLY
• Power supply voltage / fuse:    11 ÷ 15 VDC / 2 x 25 A
• Idling current (power ON/OFF)    1 A / 0.04 mA
• Consumption @ 2 Ω, 14.4 VDC (Max Musical Power):    25 A
• Remote In:    7 ÷ 15 VDC - 1 mA
• ART:    Automatic Remote Turn-On/Off with Speaker-In
• AMPLIFIER STAGE
• Distorsion - THD (100 Hz @ 4 Ω):    0.2 %
• Bandwidth:    10 ÷ 22k Hz
• S/N Ratio (A weighted @ 1 V):    100 dB
• Damping factor (100 Hz @ 4 Ω):    80
• Pre-In sensitivity:    0.2 ÷ 5 VRMS
• Speaker-In sensitivity:    0.8 ÷ 20 VRMS
• Load impedance (MIN):    2 Ω
• Max size (mm / in.):    215 x 190 x 50 / 8.46 x 7.48 x 1.97
• Weight (kg / lb.):    1.94 / 4.27
• Adjustable Crossovers    yes

Output Power

• Output Power (RMS) @ 14.4 VDC, THD 1%
• 1 Ch:    320 W x 1 (4 Ω)
• 1 Ch:    550 W x 1 (2 Ω)
• Output Power (RMS) @ 14.4 VDC, THD 10%
• 1 Ch:    380 W x 1 (4 Ω)
• 1 Ch:    700 W x 1 (2 Ω)
• CEA 2006-A Ratings:
• RMS Power (4 Ω, ≤ 1 %THD + N, 14.4 V)    300 W x 1 Ch
• S/N Ratio (ref. 1 W output):    80 dBA
• Total Power RMS    1400 W

INPUTS / FILTERS

• INPUTS:    PRE IN / SPEAKER IN
• Pre out Hi-Pass:    50 ÷ 250 Hz @ 12 dB/Oct
• Filters FULL:    Yes
• Lo-Pass:    50 ÷ 250 Hz @ 24 dB/Oct.
• SUBSONIC (on/off):    25 Hz @ 24 dB/Oct
• BOOST 50 Hz (adjust):    (0 ÷ 12) dB
• PHASE (adjust):    (0 ÷ 180) deg
• Remote Volume Control (adjust):    (-50 ÷ 6) dB
