FLTW-7627

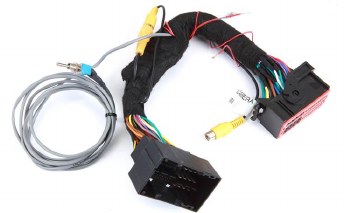

Overview: The Brandmotion T-harness is designed to allow drivers of 2013-current RAM trucks with 5" or 8.4" factory displays to switch views between dual rear-facing cameras. This could include tailgate backup cameras and aftermarket cargo or trailer cameras. The harness comes configured to use a factory reverse camera along with an optional aftermarket camera (sold separately), but can also be used with two aftermarket cameras, if desired. The T-harness installs behind the factory display unit and includes two video plugs; Video 1 and Video 2. Out of the box, Video 1 is pre-connected to the OEM Cam Out plug, for use with a factory reverse camera, but can be disconnected if using an aftermarket reverse camera. Video 2 is open-ended for the second aftermarket camera connection. When the included toggle switch is in Position 1, it enables the Video 1 input when in reverse. Likewise, when the toggle switch is in Position 2, it enables Video 2 input to display while in reverse.

Note: The factory display MUST currently change to rear camera mode when the vehicle is put into reverse, whether there's a factory reverse camera or not, otherwise the vehicle will need to be flashed by a dealership or an optional backup camera interface must be installed (sold separately).

• vehicle-specific T-harness for dual-camera integration
• integrates RAM factory backup cam with Brandmotion cargo cam
• works with 2013-current RAM trucks with 5" or 8.4" factory displays
• includes camera switch

USER MANUAL
