DMH-WT5000NEX

• 9.0" Floating HD-720 Capacitive Display (1DIN chassis) for clear, vibrant visuals
• Compatible with CarPlay & Android Auto (wired & wireless) for seamless smartphone integration
• Compatible with Alexa for voice-controlled convenience
• HD Radio & Satellite Radio tuner for a variety of listening options
• Supports USB audio & video playback (MP3, WMA, WAV, AAC, FLAC, MP4, MKV, and more)

• digital multimedia player with AM/FM tuner (does not play CDs or DVDs)

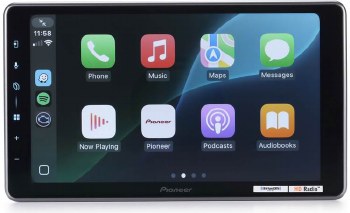

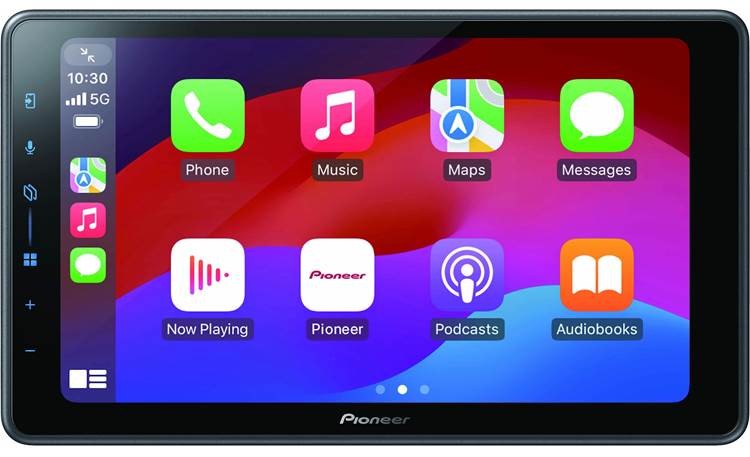

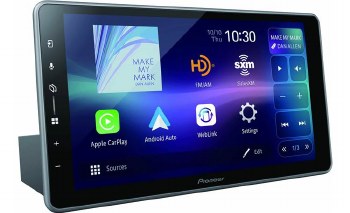

• 9" floating capacitive HD touchscreen display
• fits single-DIN dash openings
• plays media loaded with MP3, WMA, AAC, and high-res FLAC and WAV music files
• built-in Bluetooth for hands-free calling and music streaming
• built-in HD Radio tuner

Smartphone features:

• Android Auto and Apple CarPlay compatible (wired or wireless)
• Amazon Alexa via Pioneer Vozsis app
• display and command of select music, navigation, and other apps with iPhone and Android
• Pandora and Spotify control through Apple CarPlay, Android Auto, and Amazon Alexa
• screen mirroring for Android/iPhone via Pioneer's WebLink app (requires wired USB connection)

Expandability:

• compatible with SiriusXM's aftermarket satellite radio tuner (sold separately, subscription required)

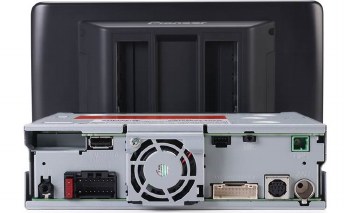

• inputs: rear USB input, rear A/V input (3.5 mm), two camera inputs (RCA)
• outputs: 6-channel preamp outputs (4-volt front, rear, sub)

Other information:

• wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
• built-in amplifier (14 watts RMS CTA-2006/50 peak x 4 channels)
• compatible with most factory steering wheel audio controls (adapter required)
• works with iDataLink Maestro and Axxess modules
  • retains factory features in a wide selection of vehicles
  • displays engine performance and other vehicle data on touchscreen
• dimensions:
  • screen: 9.25"W x 5.375"H x 2.5625"D
  • chassis: 7.015"W x 1.975"H x 6.695"D
