AUDIO CONTROL

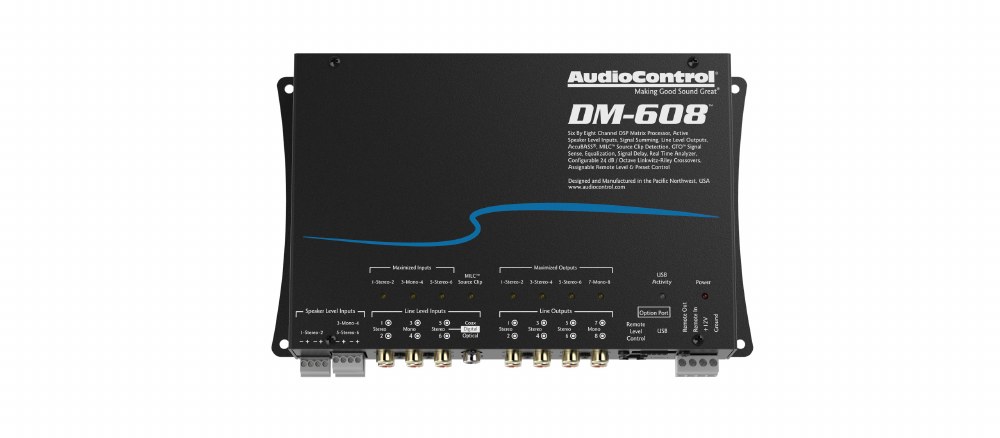

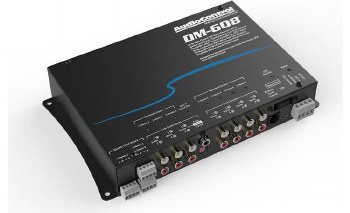

DM-608
PREMIUM 6 INPUT 8 OUTPUT DSP MATRIX PROCESSOR
- Input and Output RTA for precise and informed tuning
- GTOTM Signal Sensing
- MILCTM Clip Detection
- AccuBASS®
- Signal Summing
- Signal Delay
- 12 and 24 dB/octave crossovers
- 30 band equalizer
- Optional ACR-3 remote for preset recall and level control
- Optional AC-BT24 Bluetooth Streamer/Programmer
- DM Smart DSP app available in downloads for Mac/PC or…
inputs
- Preamp Input Channels: 6
- Digital Inputs: 1 x Toslink and Coax
- Input Impedance Preamp / Speaker-level: 20 kΩ / 7 kΩ
outputs
- Preamp Outputs Channels: 8
- Maximum Output Level: 10 Vrms
- Output Impedance: 150 Ω
performance
- Total Harmonic Distortion: 0.01%
- Frequency Response: 20 Hz to 24 kHz
- Crossover Frequency: variable
- Crossover Type: 12 and 24 dB/octave Linkwitz-Riley
control
- 12 VDC Remote In
- 12 VDC Remote Out (always active when unit is on)
general
- Power Supply: High Headroom PWM Switching
- Current Draw: 1A
- Recommended Fuse Rating: 3A
weights & dimensions
- Dimensions: 9.4”W x 5.7”D x 1.6”H
- Weight: 2.4lbs (1.1kg)
in the box: DM-608, Power and Speaker Connectors, Manual, Warranty
