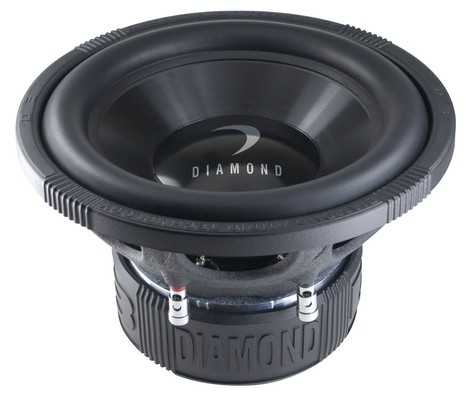

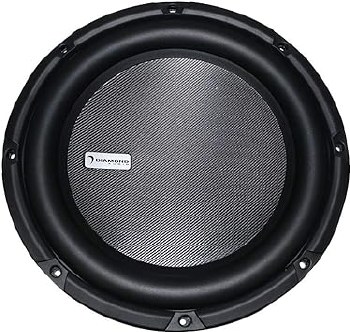

DES122

• 2Ω Impedance
• 500W RMS, 1000W MAX
• Dual Voice Coil
• Mounting Diameter: 11” / 279.5mm
• Mounting Depth: 6.63” / 168.5mm

• Subwoofer Size    12''
• Nominal Impedance (ohms)    2Ω
• SPL (db)    82.8
• Re (Ω)[series]    3.20
• Qms    8.0
• Qes    0.83
• Qts    0.75
• Fs-Free Air Resonance (Hz)    32.0
• Vas (Liter)    31.0
• Sd (cm²)    0.050
• BL (T*M)    14.8
• Xmax - Inch(mm)    15.7
• Cms (mm/N)    0.09
• Mms (g)    286
• Pwr (W) NOM/MAX    500/1000
• Total Diameter    12.57'' (319.4mm)
• Mounting Diameter (inch/mm)    11.00'' (280.6mm)
• Screw Hole Diameter    11.90'' (302.6mm)
• Mounting Depth    6.63'' (168.5mm)
• Magnet Diameter (E)    6.51'' (165.2mm)
• OWNER'S MANUAL


DES_Subs_Manual (1.21 MB)
