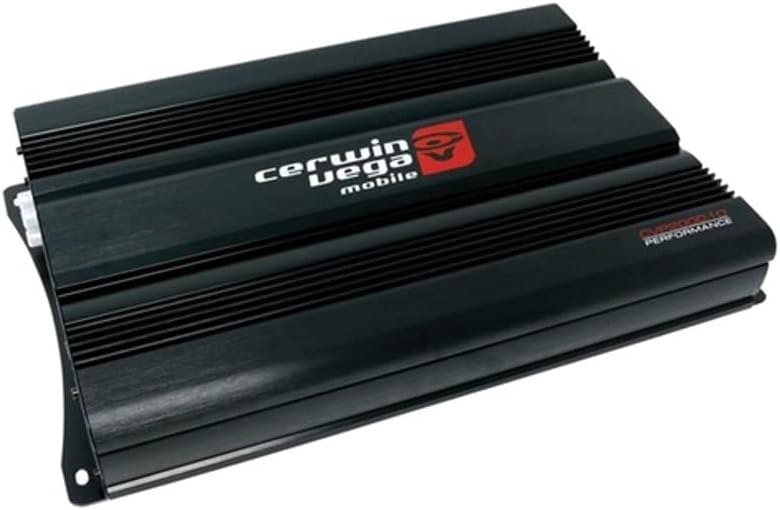

CVP2000.1D

• 2000W MAX Power
• 1 Channel Amplifier
• 400x1 @ 2Ω RMS
• 250x1 @ 4Ω RMS
• 2-Ohm Stable Class AB Monoblock Operation
• Direct Short, Thermal, & Overload Circuits Protect Amplifier
• 200mV-6V High Level or Low Level RCA Input
• Variable 12dB High, Low, & Subsonic Crossovers
• 12dB Bass Boost Increases Low Octave Harmonics
• Dimensions: 14.17” x 9.05” x 2.09”

• Amplifier    1 Channel
• Description    CVP2000.1D 400W RMS Monoblock Class AB Amplifier With Bass Control Knob
• MAX Power Rating    2000W
• RMS Power(2Ω)    400Wx1
• RMS Power (4Ω)    250Wx1
• Types    Monoblock
• Topology    Class AB
• Power Supply    Full PWM
• Power Supply (Threshold)    10.0VDC-16.0VDC
• Idle Current    (0.7A)
• Distortion - THD (1KHz@4Ω)    <1%
• Distortion - S/N Ratio (A weight @ 1W)    >90dB
• Distortion - S/N Ratio (A weight @ FP)    >105dB
• Input Sensitivity    200mV-6V
• Input Impedance - Low Input Level    20KΩ
• Output Impedance    2Ω/4Ω
• Damping Factor (50Hz@4Ω)    100
• Bandwidth (-3dB)    10Hz-400Hz
• Crossover (-12 dB/ Oct) Variable High-Pass    N/A
• Crossover (-12 dB/ Oct) Variable Low-Pass    40Hz-400Hz
• Crossover (-12 dB/ Oct) Variable Sub-Sonic    10Hz-50Hz
• FUSE Ratings - ATC    30Ax2
• Remote    Bass Volume Control
• Dimension - Length x Width x Height - Inches(mm)    13.4” x 9.38” x 2.25” (340 X 238 x 57mm)
