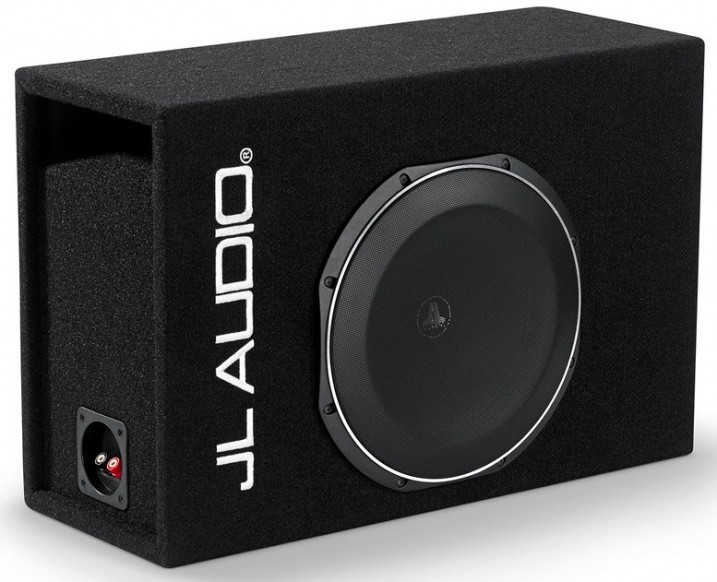

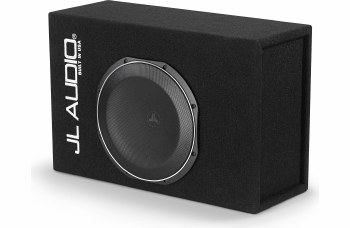

CP112LG-TW1-2

• Enclosed Subwoofer System with Single 12TW1-2 Subwoofer, Black Carpet (300 W, 2 Ω) - Ported Enclosure
• This incredible MicroSub™ subwoofer system delivers the kind of output and extension that is normally possible with only much larger systems.
• The key to its performance lies in the precise tuning of its 12TW1 Subwoofer into an efficient slot-ported design.
• Extensive interior bracing permits the use of thinner wall material that maximizes the enclosure's internal volume relative to its exterior volume.
• The port wraps around two walls of the enclosure to produce the necessary low tuning frequency that ensures excellent extension and response smoothness.
• The flared port entry and exit further enhance sound quality by minimizing air-flow noises through the port.
• This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
• Finish: Black, high-grade automotive carpet with silver "JL AUDIO" embroidery on front baffle.
• A steel mesh grille is included to protect the Subwoofer.
• Construction: CNC-Cut High-Grade MDF
• Recommended amplifier power: 75 - 300W
• Nominal Impedance: 2 Ω

• Continuous Power Handling (RMS)    300 W
• System Nominal Impedance    2 Ω
• Enclosure Type    Slot-ported, Low-profile
• Finish    Black carpet
• Grille Included    Black Steel Mesh
• External Width (W)    23.75 in / 603 mm
• External Height (H)    15.751 in / 400 mm
• External Depth (D1)    9.25 in / 235 mm
• Net Weight    38.3 lb / 17.37 kg
