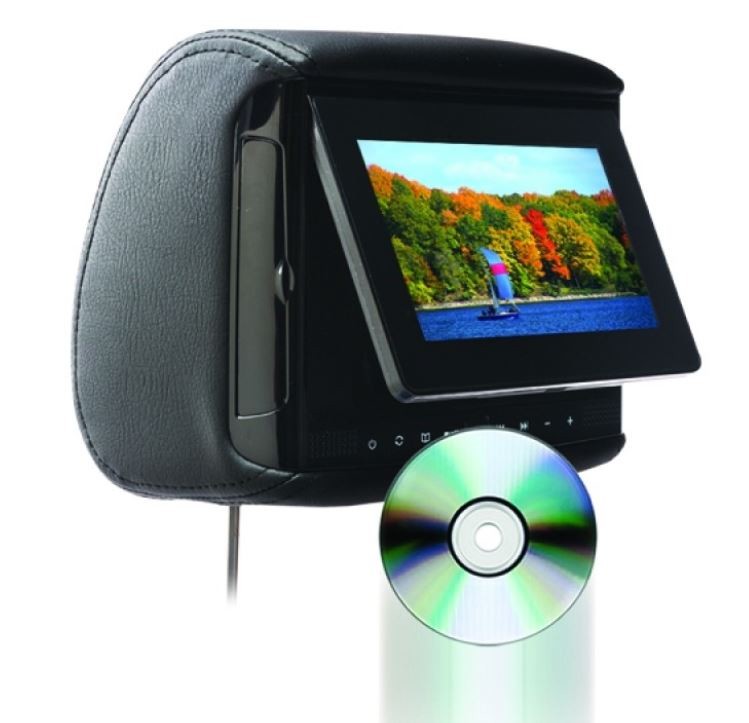

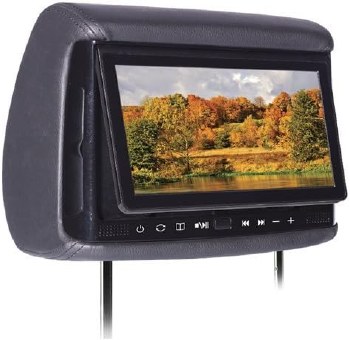

BSD-705

• 7” (16:9) TFT LCD display
• Touch sensitive controls
• HDMI input for smart phone connectivity
• Advanced ALC technology for improved audio volume
• Built-in DVD player compatible with all common disc formats
• LED backlit panels for exceptional picture quality, high efficiency and long life
• Cover colors easily interchangeable between black, grey and tan to match vehicle interior (all 3 colors included)
• Adjustable poles for universal fit
• Panel swivels out for optimal viewing angle
• Mini USB port for music, image and video playback
• Automatically selects between PAL and ATSC systems
• Front 3.5mm jack for headphones
• Two A/V inputs
• One 3.5mm front input jack
• One wired RCA input
• One A/V RCA output
• Wireless remote control
• Built-in dual speakers
• Built-in FM transmitter
• Built-in dual channel IR transmitter
• Ch A: 2.3MHz(left)--2.8MHz(right)
• Ch B: 3.2MHz(left)--3.8MHz(right)
• Resolution: 480(H) X 3(RGB) X 234(W)
• Number of pixels: 336,960
• Brightness: 400 cd/m2
• Power supply: DC +12V (10.6V-15.8V)
• Power consumption: 12W
• Operating temperature: 14 Degrees F to 140 Degrees F
• Dimensions: 9.6” x 4.8” x 7.5”
• Weight: 3.3 lbs

• Manufacturer :Concept
• Built-in DVD Player :Yes
• Headphone Transmitter :Two Channel
• Audio Video inputs :2 Audio Video Inputs
• SD Card input: Yes, SD Card

USER MANUAL
