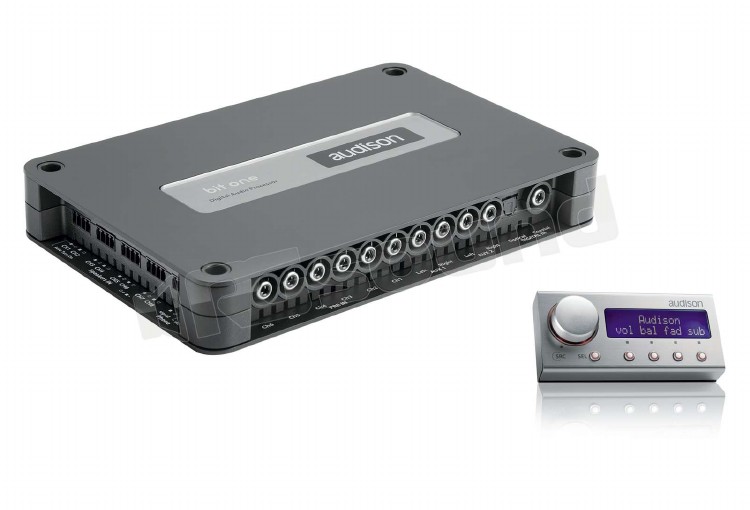

BIT ONE.1

Audio DSP and converters

• 32-BIT floating point Analog Devices Sharc (Clock speed: 266MHz) Digital Signal Processing chip and Wolfson A/D D/A converters working in PCM at 48kHz with 24 Bit resolution.
• Tuning functions can be heard in real time due to processing speed.

Audio Inputs

• 8 independent high-level channels (with automatic summing capability) or 6 independent
• analog low-level channels;
• 2 analog low-level stereo auxiliary inputs; 1 optical digital input;
• 1 electric coaxial digital input; 1 high-level momentary audio interrupt input (with Mute IN) for use with mobile phone or navigation systems.

Audio Outputs

• 8 independent low-level analog channels featuring adjustable level and 1 AD Link output (8 independent digital audio channels through a single CAT 5.S LAN cable for use with AD Link provided amplifiers).

Digital Control System

• 1 USB /B (2.0) connector for PC connection; 2 AC Link control bus connectors for DRC and AC Link amplifiers.

Configuration

• Guided procedure that, thanks to a wide range of set names, provides the ability to assign each component to the bit One connections and automatically coordinate their functioning.

Turn-on Controls

• ART automatic remote turn on/off circuit; Through the car ignition key with memory function; Through the DRC; Automatically through the hands-free phone kit.

In/Out Volume

• Input sensitivity automatically adjusted for the main inputs (with supplied Test CD and DVD); Manual input sensitivity adjustment for auxiliary inputs; Independent level control for each output channel for system fine tuning (-40 ÷ 0 dB).

Dynamic Equalizer

• System automatically self-adjusts through an equalization between low and high listening levels that can be set by the user and controlled by the DRC.

De-equalization and calibration

• Automatic de-equalization of signal fed into the high-level inputs (with supplied Test CD or DVD) and levels calibration.

Equalizers

• One 31-band graphic equalizer (1/3Oct.; ±12dB) for each one of the 4 auxiliary input; One 31-band graphic equalizer (1/3 Oct.; ±12dB) for each one of the 8 output channels.

Crossover Filter

• Filter typology: Selectable; Hi-pass, Lo-pass, Bandpass, Full Range; Cut-off frequency: 70 steps available from 10 Hz to 20 kHz; Cut-off slope: Selectable; 6 to 48 dB/Oct.; Alignments: Selectable; Linkwitz or Butterworth; Mute: Selectable for each output (On/Off); Phase: Selectable for each output (0°/180°).

Signal channels reconstruction

• It can reconstruct a stereo signal from a multi-channel signal. In addition it can reconstruct a centre channel and subwoofer channels from a stereo input alone.

Time Alignment

• Guided procedure for the speaker distance data entry with an automated calculation of proper delay times for each channel for accurate time alignment set-up.
• System also provides for manual fine tuning of delay (0 ÷ 22 ms max).

Auto Restart

• Automatic turn Off/On, if the DSP locks up.
• DRC Master Volume control, Subwoofer Volume control, Balance control, Fader control, Input selection, Memory selection, Dynamic Equalizer On/Off, Adjustable display brightness, Access to digital features of Audison TH amps if connected.

Memory

• 4 presets separately managed and recalled by the DRC Remote Control.

Bit One software

• Windows (Win 2000, XP, Vista, 7) based software with “Standard” and “Expert” operating modes;
• Screen resolution: 1024 x 768 px min.

AMPLIFIER TECH DATA

• Nominal power supply voltage / Fuse    11 ÷ 15 VDC
• Channels    8
• Sample Rate    24 bit / 48 kHz
• Hi Level Inputs    8
• Low Level Inputs    8
• Digital Inputs    2
• Processing Method    Floating point
• Idling current    0.45 A
• Switched off without DRC MP    < 0.5 mA
• Switched off with DRC MP    < 1.8 mA
• Remote IN    7 ÷ 15 VDC (1.3 mA)
• Remote OUT    12 VDC (130 mA)

SIGNAL STAGE

• Distortion - THD @ 1 kHz, 1 VRMS Output    0.002 %
• Bandwidth @ -3 dB    4.5 ÷ 21k Hz
• S/N ratio @ A weighted, 4 V Output, 2 V AUX input    102 dBA
• Channel Separation @ 1 kHz    77 dB
• Max Output Level 0.1% THD    4 V RMS

INPUT STAGE

• Low level (Pre)    Ch 1 ÷ Ch 6, AUX1 L/R, AUX2 L/R
• High Level (Speaker In)    Ch 1 ÷ Ch 8, Phone In

CROSSOVER

• Filter type    Selectable; Hi-pass, Lo-pass, Bandpass, Full Range
• Filter mode and slope    Full / Hi-Pass / Low Pass / Band Pass

TIME ALIGNMENT

• Delay    0 ÷ 22 ms in 0,02 ms steps (748 cm / 294.5 in.)

GENERAL REQUIREMENTS

• PC connections    USB /B (2.0)
• PC OS    Windows (Win 2000, XP, Vista, 7)
• Video Resolution with screen resize    1024 x 768 px min.
