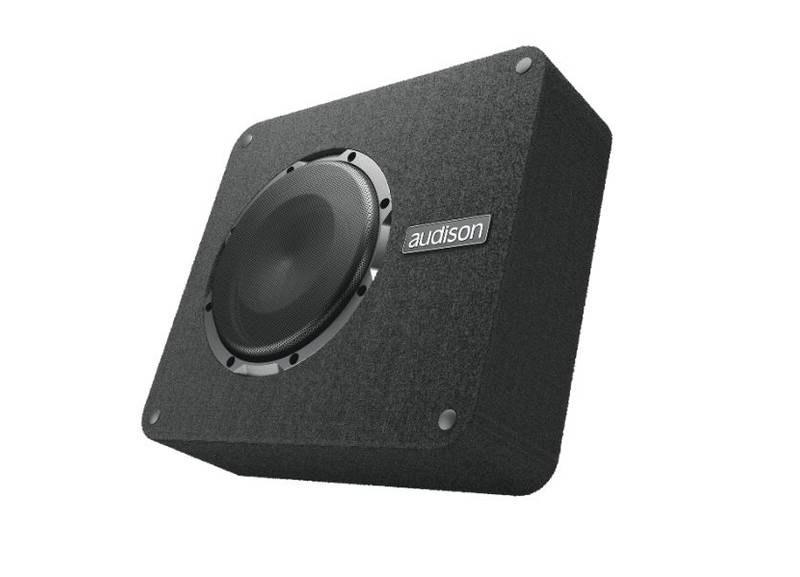

APBX 8 DS

• Ultra-low profile (5.16 in. / 131 mm) box with sealed design perfectly tuned to fully exploit the APS 8 D driver.
• 2S² (2 Sides/2 Sounds) design provides the ability to choose between Down-Firing mounting to increase the low-frequency extension and Up-Firing install to obtain more punch and definition.
• Leveling feet with velcro inserts included for a secure grip with the  carpet while maintaining easy removal.
• SSP (Sub Smart Plug) features both traditional push contacts and a  Plug-&-Play terminal block to easily configure the impedance as required
• and provides a quick release.
• Rounded corners allow easy positioning in the trunk and act as  reinforcement to reduce enclosure resonance.
• Special designed cone-dustcap-basket geometry which guarantees a  long linear excursion capability (9 mm, one-way).
• Massive driver motor assembly, optimized with FEM (Finite Element Modeling) for perfect control under high excursion conditions.
• Water-repellent pressed paper 8 in. cone, featuring a profile developed with FEM simulation and optimized with the Klippel Scan Vibrometer. Specifically developed to be combined with either AP1 D mono or AP4.9  bit/AP4 D (2 CH bridged) amplifiers taking advantage of the bass boost feature and integrated parametric equalizer of the built-in DSP.
• Sturdy metal grid included for a total protection of the subwoofer driver.

TECHNICAL SPECS

• Size    200 mm
• Power Handling - Peak    500 W
• Power Handling - Continuous    250 W
• Magnet Material    HIGH DENSITY FLUX FERRITE
• Cone Material    WATER REPELLENT PRESSED PAPER

DIMENSIONS

• Dimension A    374 mm
• Dimension B    334 mm
• Dimension C    109 mm
