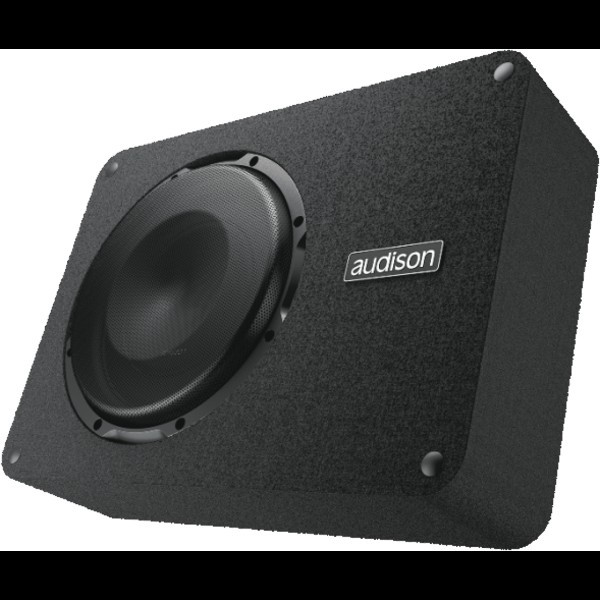

APBX 10 DS

• Ultra-low profile (5.6 in. / 142 mm) box with a sealed design perfectly tuned to fully exploit the APS 10 D driver.
• 2 Sides/2 Sounds: design provides the ability to choose between Down-Firing mounting to increase the low-frequency extension and Up-Firing installation to obtain more punch and definition.
• Leveling feet with velcro inserts included for a secure grip on the carpet while maintaining easy removal.
• SSP (Sub Smart Plug) features both traditional push contacts and a Plug-&-Play terminal block to easily configure the impedance as  required and provides a quick release.
• Rounded corners allow easy positioning in the trunk and act as reinforcement to reduce enclosure resonance.
• 6 Special designed cone-dustcap-basket geometry which guarantees a  long linear excursion capability (11 mm, one-way).
• Massive driver motor assembly, optimized with FEM (Finite Element  Modeling) for perfect control under high excursion conditions.
• Water-repellent pressed paper 10 in. cone, featuring a profile developed with FEM simulation and optimized with the Klippel Scan Vibrometer.
• Specifically developed to be combined with either the AP8.9 bit  (2 CH + 2 CH bridged), AP5.9 bit (Sub CH) or AP4.9 bit/AP4 D (2 CH bridged) amplifiers taking advantage of the bass boost feature and integrated parametric equalizer of the built-in DSP.
• A sturdy metal grid is included for the total protection of the subwoofer driver.

TECHNICAL SPECS

• Size    250 mm
• Power Handling - Peak    800 W
• Power Handling - Continuous    400 W
• Magnet Material    HIGH DENSITY FLUX FERRITE
• Cone Material    WATER REPELLENT PRESSED PAPER

DIMENSIONS

• Dimension A    470 mm
• Dimension B    334 mm
• Dimension C    120 mm
