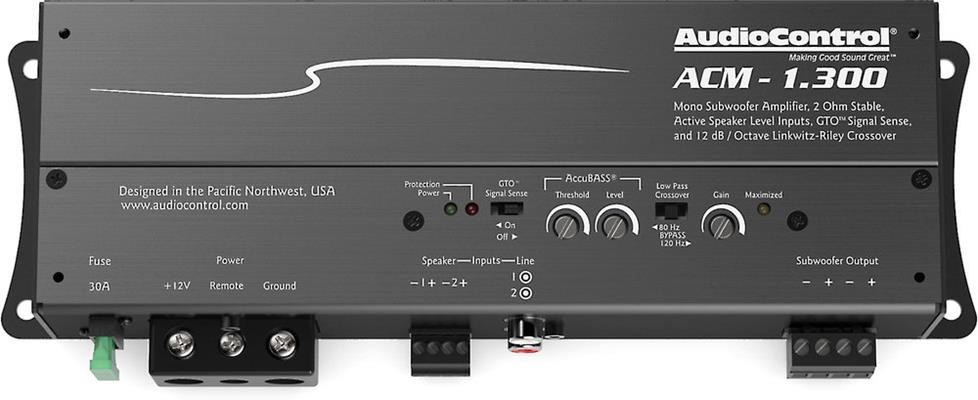

ACM-1.300

• 300 watts @ 2 ohms
• 175 watts @ 4 ohms
• AccuBASS® Processing
• GTOTM Signal Sense
• Active speaker-level inputs for OEM integration
• RCA Line Inputs
• Linkwitz-Riley Crossover
• Optional ACR-1  remote level control
• Reversible Cover Plate
• Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)

inputs

• Preamp Inputs: 2 Balanced
• Preamp Input Voltage Range: 500 mV – 6 Vrms
• Speaker Level Inputs: 2
• Speaker Level Input Voltage Range: 3 V – 40 Vrms

outputs

• Rated Continuous (RMS) Power at 14.4V:
  • 4 Ω – 175 W RMS
  • 2 Ω – 300 W RMS

performance

• Frequency Response: 10 Hz – 22 kHz
• Signal to Noise: 102 dBA, Ref 175 W @ 4 Ohm
• THD+N: < 0.01%
• Power / Ground Wire Gauge: 10 to 4 AWG wire
• Fuse Rating: 1 x 30 A
• Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
• PFM Subsonic Filter: 24 Hz

weights & dimensions

• Dimensions: 9.4″W x 3.0″D x 1.75″H
• Weight: 2.1 lbs. (0.95 kg)

in the box: ACM-1.300, Speaker Connectors, Fuse, Manual, Warranty
