9002-8817

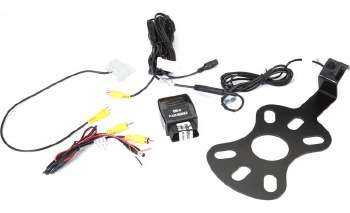

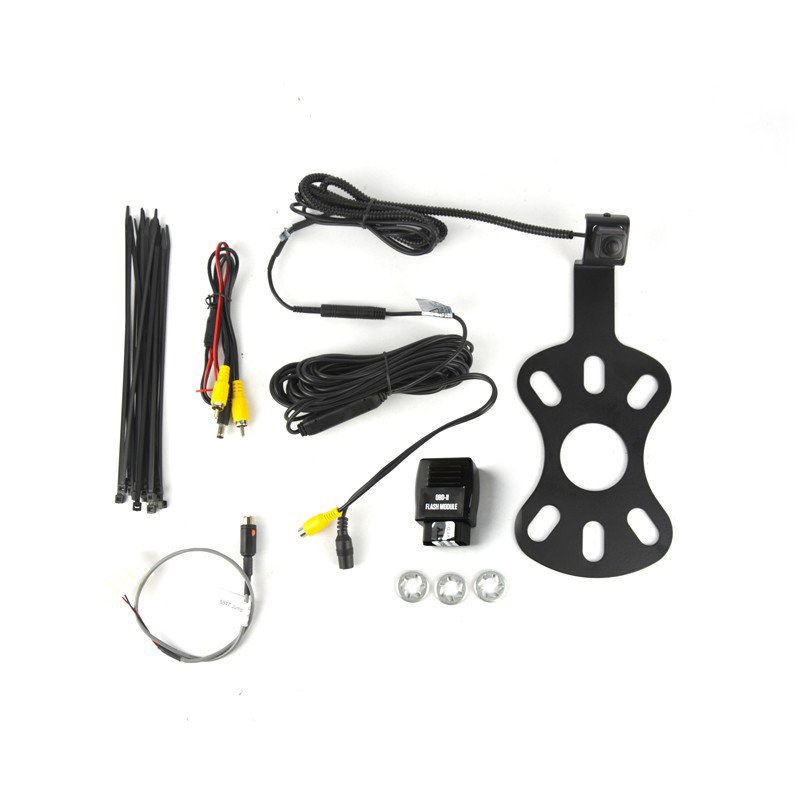

Overview: Brandmotion's 9002-8817 kit lets you add rear-view functionality to your 2007-2018 Jeep Wrangler JK (including Unlimited version) equipped with a factory video screen and factory spare tire. It includes a high-quality CMOS camera mounted on an innovative spare tire hub mounting bracket.

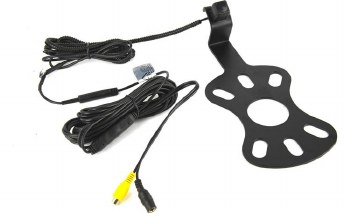

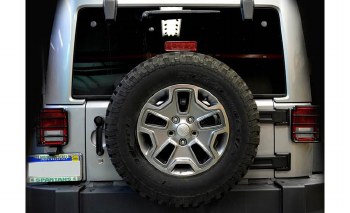

Spare Tire Mount: The included camera bracket is specifically designed to mount behind the factory spare tire with the camera partially concealed between two of the upper wheel spokes. This allows the camera to be centered on the rear of the vehicle looking down, offering a wide 170˚ view.

Note: The 9002-8817 is not compatible with aftermarket spare tire wheels. If you have an aftermarket spare tire wheel, use the 9002-8847 instead.

Parking Guidelines: The 9002-8817 rear-camera will display Parking Assist lines. A small green wire, when cut, will display Parking Assist lines on the rear image.

Wiring: All wiring for the add-on rear-view camera is included. The 29' video cable terminates at the radio location and features a composite video plug that can be attached to the included factory radio camera-input adapter, allowing it to be fed into the factory radio. If an aftermarket radio is used, this composite video end can be plugged directly into the rear-camera input. Bare ended power and ground wires for the camera will need to be tied into the factory wiring at the dash location.

Note: Care must be taken to not run the camera cable through the center of the camera bracket, as this will cut the cable and void the warranty.

Flashing Module: Included with the rear-view camera kit is an OBDII flash module. This is used to "activate" the rear-view feature of the factory radio, avoiding a trip to the dealership to have the vehicle flashed. After the installation is complete, the vehicle is run for approximately 20-30 seconds, then the flashing module is temporarily plugged into the OBDII port. When the green light on the flashing module lights, programming is complete and the module is removed.

Note: The flashing module is VIN locked for single vehicle use only.

• CMOS color rear-view camera
• includes bracket for fitting between spokes of rear spare tire
• wide-angle camera compatible with select Jeep Wrangler factory touchscreen radios
• vehicle-specific harnesses and OBDII program module included
• parking lines (selectable at time of installation)
• 170° wide viewing angle
