51KLSR88

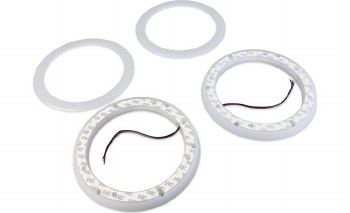

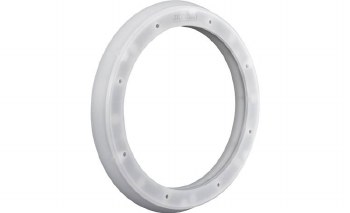

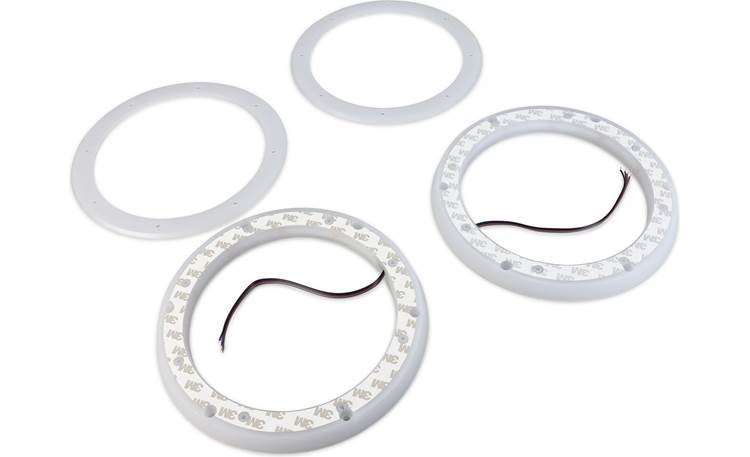

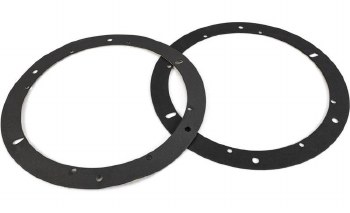

Overview: The Kicker KLSR (51KLSR88) 8" multi-color LED spacer rings are designed specifically for Kicker KM8 Marine speakers (sold separately). These weather-proof, polycarbonate spacer rings come equipped with 7 standard color options, but can be expanded to 20 colors and 19 lighting modes with the optional KMLC LED remote controller (sold separately). Each spacer ring is approximately 3/4" high and includes foam gaskets with adhesive backing for protecting the mounting surface. The overall height, including the foam gasket, is 0.810".

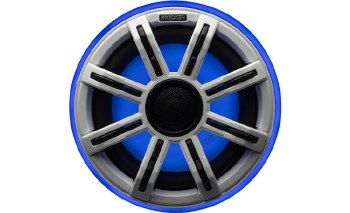

8.8" Mounting Hole Compatible: The KLSR LED spacer rings let you mount your Kicker KM8 8" marine speakers in 8.8" speaker mounting holes, a size popular with some other brands of marine speakers.

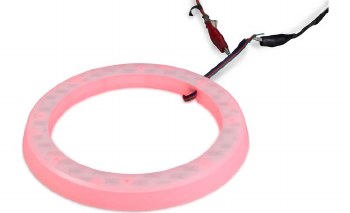

Wiring: A 7" wiring pigtail includes a Black wire that gets connected to a +12VDC power source, and Red, Green, and Blue wires that, when grounded, will allow the light ring to illuminate that corresponding color. Multiple RGB wires can be grounded to create blended color combinations.

Dimensions:

• Outer Diameter: 8.792"
• Inner Diameter: 6.70"
• Height: 0.763" (0.810" including gasket)
• Bolt Pattern (center-hole to center-hole):
  • • Screw Holes: 8
    • Perimeter: 2.848"
    • Diagonal: 7.420"

• multi-color LED light rings (for Kicker speakers only)
• weather-proof design
• seven standard color options
• works with Kicker KMLC LED remote controller (not included)
