48CWRT104

Dual Voice Coils: This woofer features dual 4Ω voice coils, offering wiring flexibility. When the voice coils are wired in parallel, the woofer presents a 2Ω load. When the voice coils are wired in series, the woofer presents an 8Ω load.

Shallow-Mount: Kicker's CompRT series is designed to minimize depth, giving you subwoofer options where standard enclosures don't fit.

All-Weather: Although not marine certified, Kicker describes the CompRT series as weatherproof.

Cooling: Kicker engineers developed a Forced Air Cooling system, using the motor structure to pull air across the voice coils, helping the sub run up to 20% cooler than the previous model.

Sealed Enclosures: Sealed enclosures provide the most control over a woofer and provide accurate sonic reproduction, making them suitable to all types of music. Kicker recommends sealed enclosures from 0.4 ft³ to 1.25 ft³.

Vented Enclosures: Vented (or ported) enclosures typically provide better overall efficiency than sealed so they are suitable for use with smaller amplifiers, giving you more bass output from a given amount of power. Kicker recommends the following ported enclosures:

• Minimum Enclosure Volume: 1.25 ft³ with a 10" x 2" x 20" slot port
• Maximum Enclosure Volume: 1.75 ft³ with a 10" x 2½" x 20" slot port

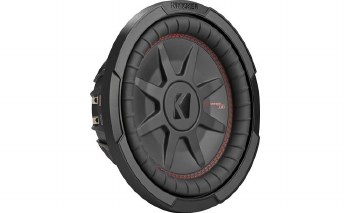

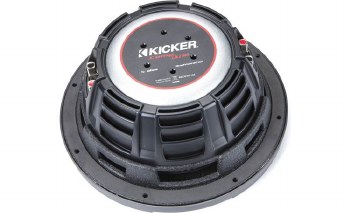

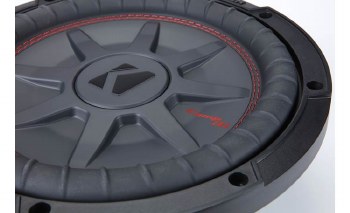

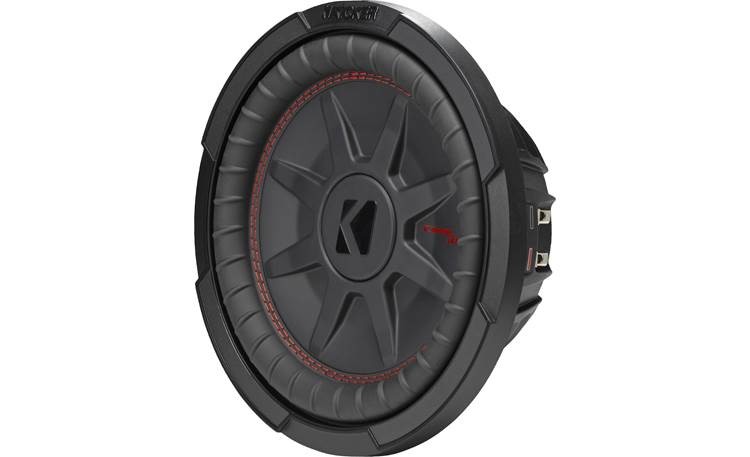

• 10" shallow-mount subwoofer with dual 4-ohm voice coils
• injection-molded polypropylene cone
• rubber surround
• power handling: 400 watts RMS (800 watts peak)
• frequency response: 25-500 Hz
• sensitivity: 84.8 dB
• top-mount depth: 3.4125"
• sealed box volume: 0.4 - 1.25 cu. ft.
• ported box volume: 1.25 - 1.75 cu. ft.
• grille not included
