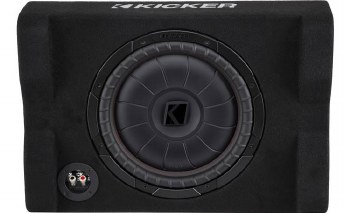

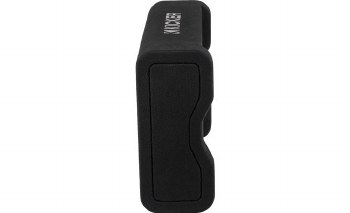

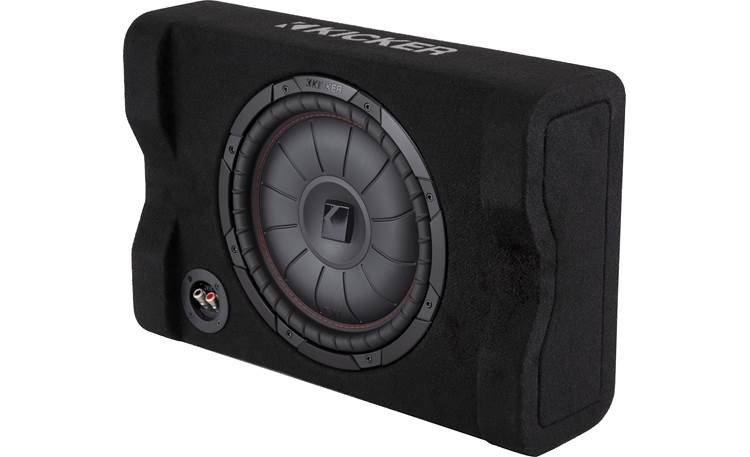

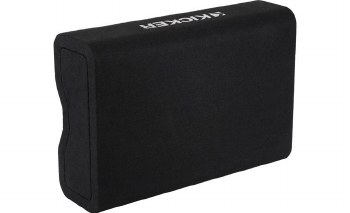

48CVTDF122

CompVT Woofer: The Kicker 48CVTDF122 enclosure is loaded with one 12" CompVT series shallow-mount subwoofer. The Kicker subwoofer features a stiff injection-molded polypropylene cone with full perimeter venting, along with a UniPlate back plate and pole piece, providing exceptional cooling in an ultra-thin design. The ribbed surround and cone are attached using Kicker's signature red stitching, providing an outstanding bond.

Down-Firing Enclosure: The sealed down-firing enclosure is made of heavy-duty MDF (Medium Density Fiberboard) with extensive internal bracing, providing exceptional acoustic efficiency and deep powerful bass. The enclosure is covered in sleek black carpeting for added protection and a refined look. Its compact, down-firing form allows it to be mounted in cargo areas, or under seats.

Speaker Terminals: A single pair of spring-posts are mounted on the underside of the enclosure in a recessed terminal cup, and will accept pin connectors, single banana plugs, or bare wire up to 10 gauge.

Power: The single 2Ω CompVT subwoofer can handle 200W-400W RMS (800W peak).

Break-in Period: Due to the complex nature of Kicker CompVT speakers, they require a break-in period in order to produce optimum low-bass response. The suspension system is very stiff out-of-the-box. Approximately two weeks of daily playing will allow the suspension to break-in and reach its optimum equilibrium. Once broken-in, the subwoofer will exhibit stronger bass performance, smoother response, and greater low-bass extension.

• sealed downward-firing enclosure with one 12" CompVT subwoofer
• 3/4" medium-density fiberboard construction covered with carpet
• 2-ohm total impedance
• power handling: 400 watts RMS (800 watts peak)
• frequency response: 25-500 Hz
• sensitivity: 98 dB
• dimensions: 21.5"W x 6.5"H x 14.63"D
