47KLSR8

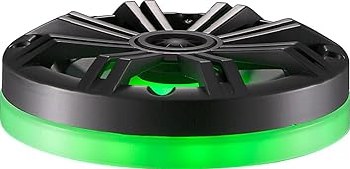

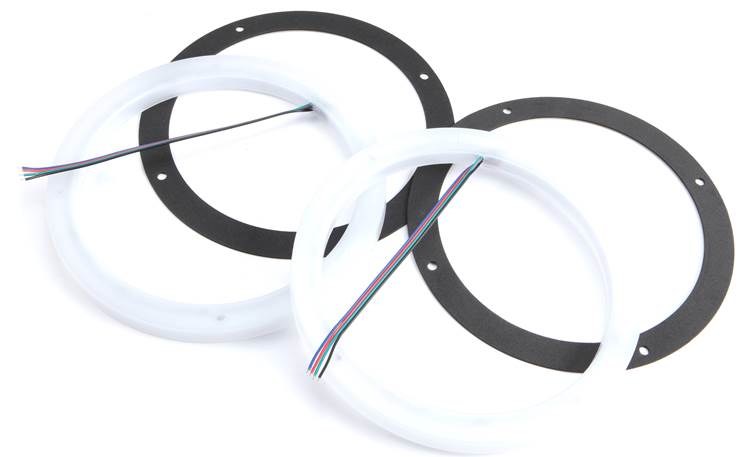

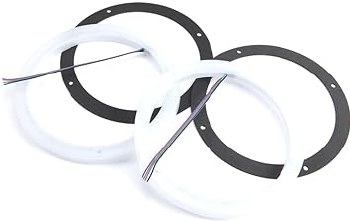

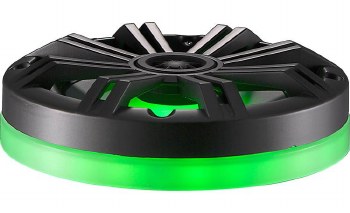

Overview: The Kicker 47KLSR8 multi-color LED spacer rings are designed specifically for Kicker KM8 Marine speakers (sold separately). These weather-proof, polycarbonate spacer rings come equipped with 7 standard color options, but can be expanded to 20 colors and 19 lighting modes with the optional KMLC LED remote controller (sold separately). Each spacer ring is 1/2" high and includes foam gaskets with adhesive backing for protecting the mounting surface.

Wiring: A 7" wiring pigtail includes a Black wire that gets connected to a +12VDC power source, and Red, Green, and Blue wires that, when grounded, will allow the light ring to illuminate that corresponding color. Multiple RGB wires can be grounded to create blended color combinations.

Dimensions:

• Outer Diameter: 8.10"
• Inner Diameter: 6.72"
• Height: 0.56"
• Bolt Pattern (center-hole to center-hole):
  • Perimeter: 5.30"
  • Diagonal: 7.47"

• multi-color LED light rings (for Kicker KM8 speakers only)
• weather-proof design

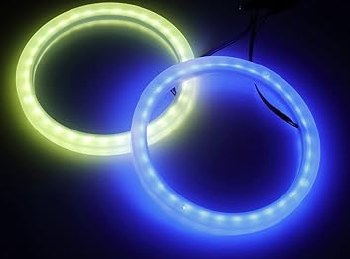

• seven standard color options
• works with Kicker KMLC LED remote controller
