46KRC12

Marine Certified: The Kicker KRC12 features IPX66 waterproof / dustproof certification, so it can hold up in the marine environment and withstand powerful splashes of water out on the ocean or lake. During testing, water is projected at all angles through a 12.5mm nozzle at a flow rate of 100 liters/min at a pressure of 100 kN/m2 for 3 minutes from a distance of 3 meters. It's also fully dustproof and does not allow any dust or debris to enter the remote.

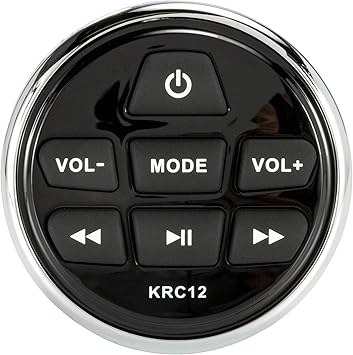

Push-Button Controls: The Kicker KRC12 remote offers rubber push-button controls. Remote control functions include Power, Volume, Source, Track, and Station. By connecting the wired remote's illumination wire (orange) to 12V accessory power, the buttons will be white backlit.

Note: The Kicker KRC12 remote does not feature a LCD screen.

Mounting Options: The gauge-style marine wired remote requires a 2" (diameter) cut-out. The included bracket and mounting hardware secure the remote in place, while an integrated rubber gasket seals up the installation.

• Chassis Cutout Dimensions: 2.0" (diameter) x 2.75" (depth)
• Front-Panel Dimensions: 2.4375" (diameter) x 0.8125" (depth)

OD: 2.41”
Mounting hole diameter: 2”
Protrusion from mounting surface: 0.75”
Mounting Panel Thickness Range: 1/8”-1”
Mounting Depth Minimum: 1”
Included Cable: 25'
