46CWTB104

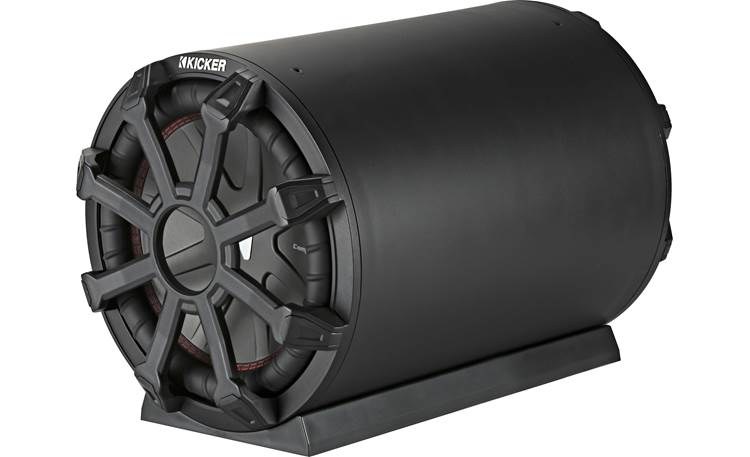

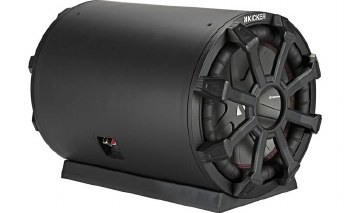

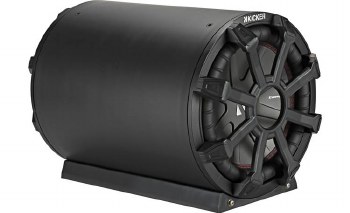

Overview: The Kicker CWTB104 is a weather-proof passive subwoofer featuring a CompR driver and a passive Reflex woofer designed to be installed on Jeeps, boats, and UTVs. The 4 ohm subwoofer can handle 400 watts RMS/800 watts peak power and can be mounted either vertically or horizontally.

Enclosure: The CWTB104 is housed in a thick ABS enclosure with heavy-duty grills for a weather-proof subwoofer solution that's at home in the outdoors. Connection to the sub is done with two recessed spring-loaded terminals, providing a positive electrical connection while being protected from the elements. The sub also includes all hardware for mounting it either vertically, with 17-1/16" of mounting height, or horizontally, with 10-3/4" of height.

CompR: The Kicker sub enclosure includes a CompR mounted on one end and a passive Reflex Subwoofer on the other end. The CompR features a powerful ceramic magnet, an advanced suspension, and superior heat management for long life. Kicker uses its signature red stitching on the woofer for an outstanding bond between the driver's Santoprene surround and Polypropylene cone, providing reliable performance under extreme conditions. Kicker's SoloKon technology joins the cone to the vented back brace, both cooling the motor and eliminating distortion, for clean smooth bass. The built-in Reflex Subwoofer uses the same cone and surround materials as the active sub and is mounted on the opposite end, providing even deeper louder bass than with just the active driver.

• sealed enclosure with one 10" CompR subwoofer and passive radiator
• tube-shaped ABS plastic enclosure
• vertical or horizontal mounting

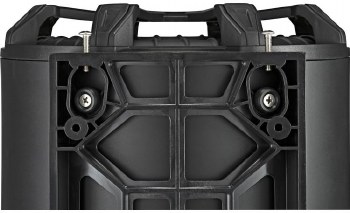

• mounting brackets, grilles, and hardware included
• passive radiator augments bass response without port noise
• 4-ohm impedance
• power handling: 400 watts RMS (800 watts peak)
• frequency response: 25-500 Hz
• sensitivity: 85.7 dB
• dimensions: 10-5/8"W x 16-9/16"D
• enclosure height: 10-3/4" (horizontal), 17-1/16" (vertical)
