46CSS684

Polypropylene Woofer Cones: The Kicker CS-series speakers feature durable polypropylene woofer cones, resistant to the moisture and temperature extremes found in automotive applications.

Ribbed Polyester Foam Surrounds: The ribbed polyester foam surrounds allow extended cone excursion for additional bass output and higher SPL.

Woofer Mounting Applications: Kicker describes these woofers as 6x8, but they also fit many 5x7 applications. Please enter your vehicle information to confirm fit.

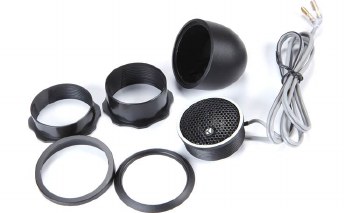

Tweeter Mounting Options: The tweeters come with brackets to allow multiple mounting configurations: flush-mounted, angled flush-mounted (approximately 10°), and angled surface-mounted (approximately 45°).

Tweeter Dimensions:

Crossovers: The component system includes passive 2-way crossover networks for a seamless transition between the woofers and tweeters. The slope is 12dB per octave (both high pass and low pass) and the crossover point is 4000 Hz. A switch on each crossover allows you to set the tweeter output; 0 dB, +3 dB, or +6 dB. Each crossover's input and output wires are attached; the 35" woofer output has quick slide terminals that connect directly to the woofer and the 35" tweeter output has bullet terminals that mate to the terminals on the tweeter wires.

Crossover Dimensions:

• Length: 4.02" (4.67" including mounting flange)
• Width: 2.29" (4.47" including tweeter output level switch)
• Height: 1.01"

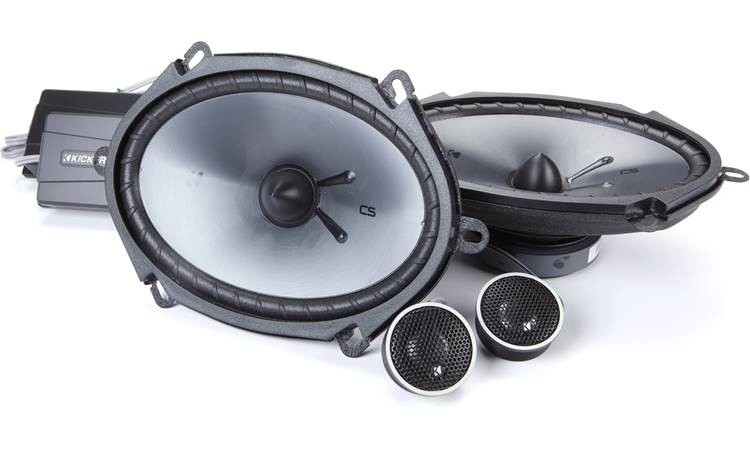

• component speaker system includes 2 woofers, 2 tweeters, and 2 crossovers

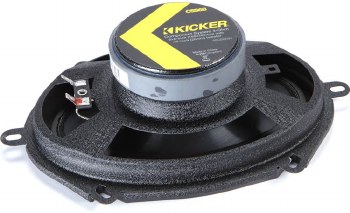

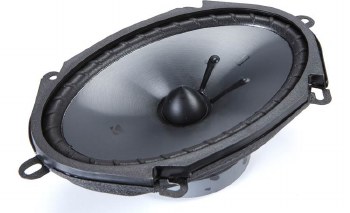

• 6"x8" polypropylene woofers with polyester foam surrounds
• 3/4" titanium dome tweeters
• external crossover network with 3 tweeter levels (0, +3, +6 dB)
• handles up to 75 watts RMS (225 watts peak power)
• frequency response: 40-21,000 Hz

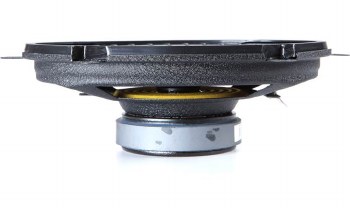

• top-mount depth: 2-5/16"
• grilles not included
