45KM654L

Marine-Ready: The Kicker KM series marine coaxial speakers are engineered to meet or exceed ASTM B117 Salt Fog (200 hour test) and ASTM G154 Accelerated UV (400 hour test) industry standards. The speakers feature sealed motors, cones, and locking wire terminal covers.

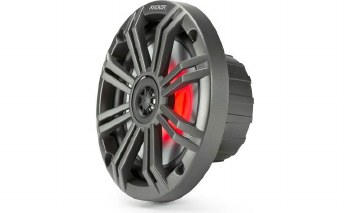

LEDs: There are multi colored LEDs behind the tweeter casing, to create a glow on the woofer cone. Depending on what combination of the three LED wires is connected, they can light red, green, blue, lime green, magenta, aquamarine, or blue-white. A wireless remote (item number 20641KMLC, sold separately) is also available to control the backlighting. A 12 volt power supply is needed to turn the LEDs on.

Size: The 45KM654Ls fit into standard 6-1/2 and 6-3/4 openings (standard car speaker sizes). The frame is bigger than a typical 6-1/2 and the screw hole pattern matches 6-3/4 speakers. Because of the significant mounting height, they won't fit in most car applications.

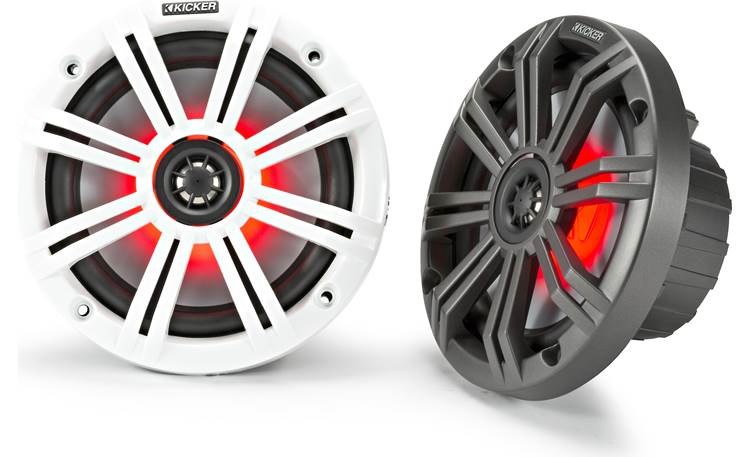

Grilles: Two pair of grilles are included, charcoal and white.

Terminal Cover: The speakers feature splash and spray resistant, locking terminal covers. These covers have water-resistant gaskets to prevent terminal corrosion and electrical shorting.

• handles up to 65 watts RMS (195 watts peak power)
• frequency response: 35-21,000 Hz
• sensitivity: 90 dB
• impedance: 4 ohms
• mounting depth: 2-3/8"
• 2-way 6-1/2" marine speakers (pair)
• UV-treated polypropylene woofer with Santoprene rubber surround
• 3/4" balanced dome titanium tweeter
• built-in LED lighting with 20 color options and 19 dynamic modes
• optional KMLC remote controls all lighting functions
• comes with charcoal and white grilles

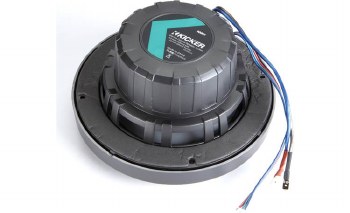

• sealed motor structure and locking terminal covers
• stainless steel mounting hardware included
