KICKER
41KMLC

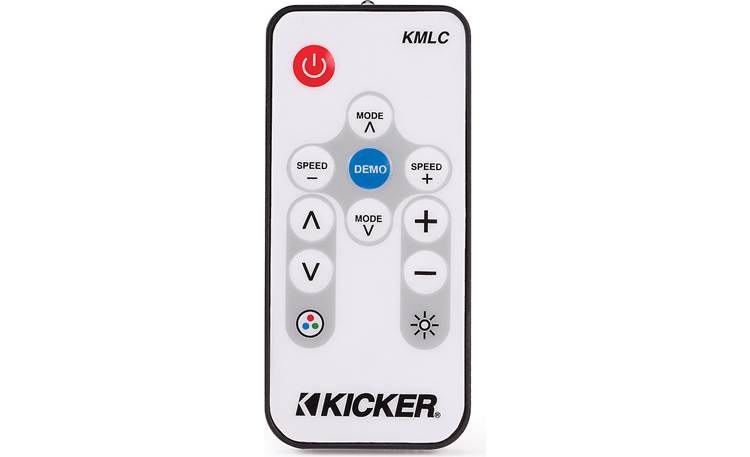

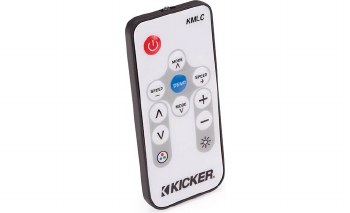

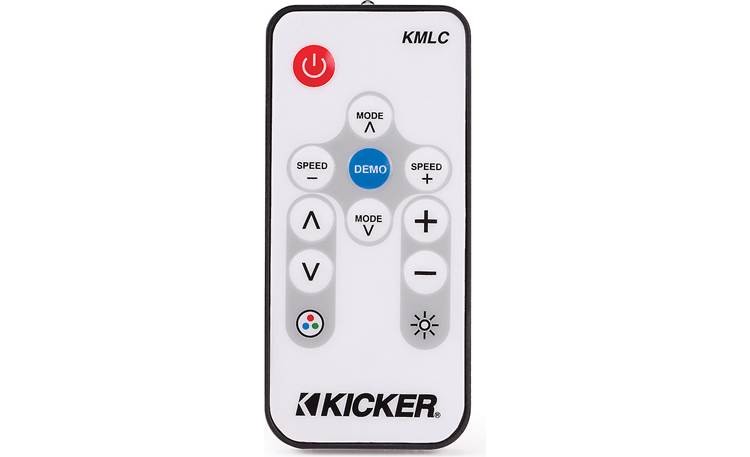

KMLC LED Lighting Remote (with receiver module). 19 lighting modes and 20 colors to choose from. KMLC LED pig-tail included.
Wiring: If only using one Kicker LED speaker, subwoofer, or grille, the harness with the in-line RF receiver will plug directly into the harness attached to the speaker. If using more than one speaker, subwoofer, or grille (up to 12 can be used with a single RF receiver), both included harnesses are used and spliced to all the speakers. A 7.5A fuse is recommended for the power wire connection and is sold separately.
Controls:
- Power: LEDs on/off
- Mode: change the blinking pattern and color pattern
- Speed: change the blinking frequency
- Demo: cycles through all modes
- Color: select the static color
- Brightness: adjust LED brightness
Specifications:
- Input Voltage: +12 volts
- Output Current: 7.5A (4A peak per individual RGB wire)
- Recommended Fuse Protection: 7.5A
- Remote Frequency: 433.92 MHz
- Remote Range: 30' (with no obstructions)
- control your LED-equipped Kicker marine speakers and subs
- choose from 20 colors or 19 dynamic modes
- made for marine use
- RF Wireless remote control
- CR2025 Battery (installed)
- 14" Wiring harness with in-line RF Receiver
- 6" Wiring harness
