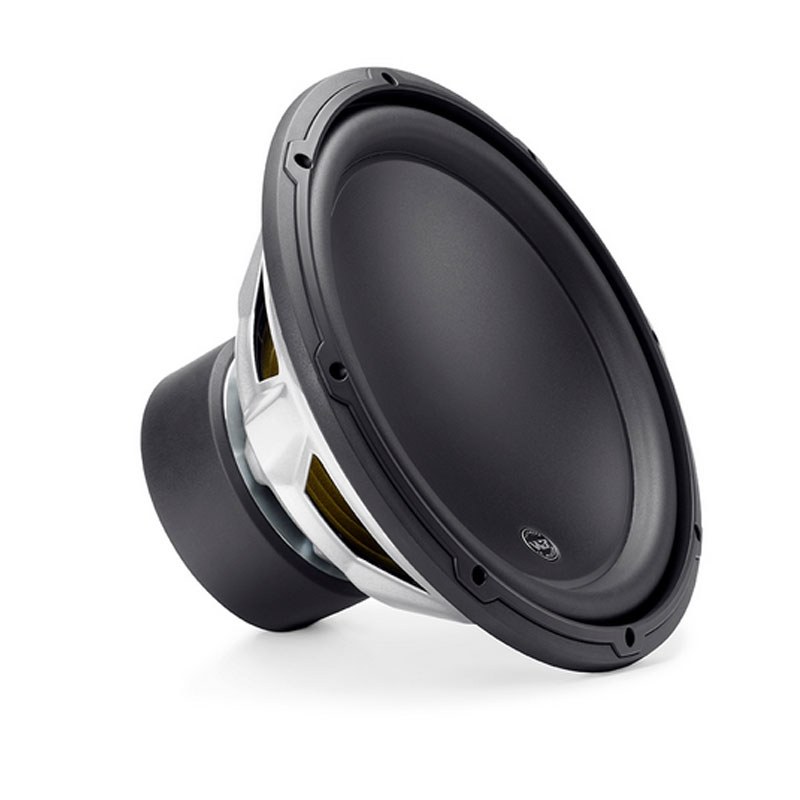

12W3V3-4

• W3v3 12-inch Subwoofer (500 W, 4 Ω)
• This powerhouse 12-inch driver delivers potent performance and world-class sound quality in medium power applications.
• Several exclusive JL Audio technologies and proprietary assembly techniques are applied to the 12W3v3 to enhance linearity and reliability.
• The 12W3v3-4 is best used with amplifier power in the 150W - 500W range and is optimized to operate in a compact 1.125 cu. ft. (31.8 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure.

• Continuous Power Handling (RMS)    500 W
• Recommended Amplifier Power (RMS)    150 - 500 W
• Nominal Impedance (Znom)    4 Ω
• Nominal Diameter    12.0 in / 300 mm
• Overall Diameter (A)    12.5 in / 318 mm
• Mounting Hole Diameter (B)    11.0625 in / 281 mm
• Bolt Hole Circle Diameter (C)    11.7 in / 297 mm
• Motor Outer Diameter (D)    5.5 in / 140 mm
• Mounting Depth (E)    6.65 in / 169 mm
• Driver Displacement    0.071 cu ft / 2.01 L
• Net Weight    14.50 lb / 6.58 kg

Download  12W3v3-4 Product Manual
