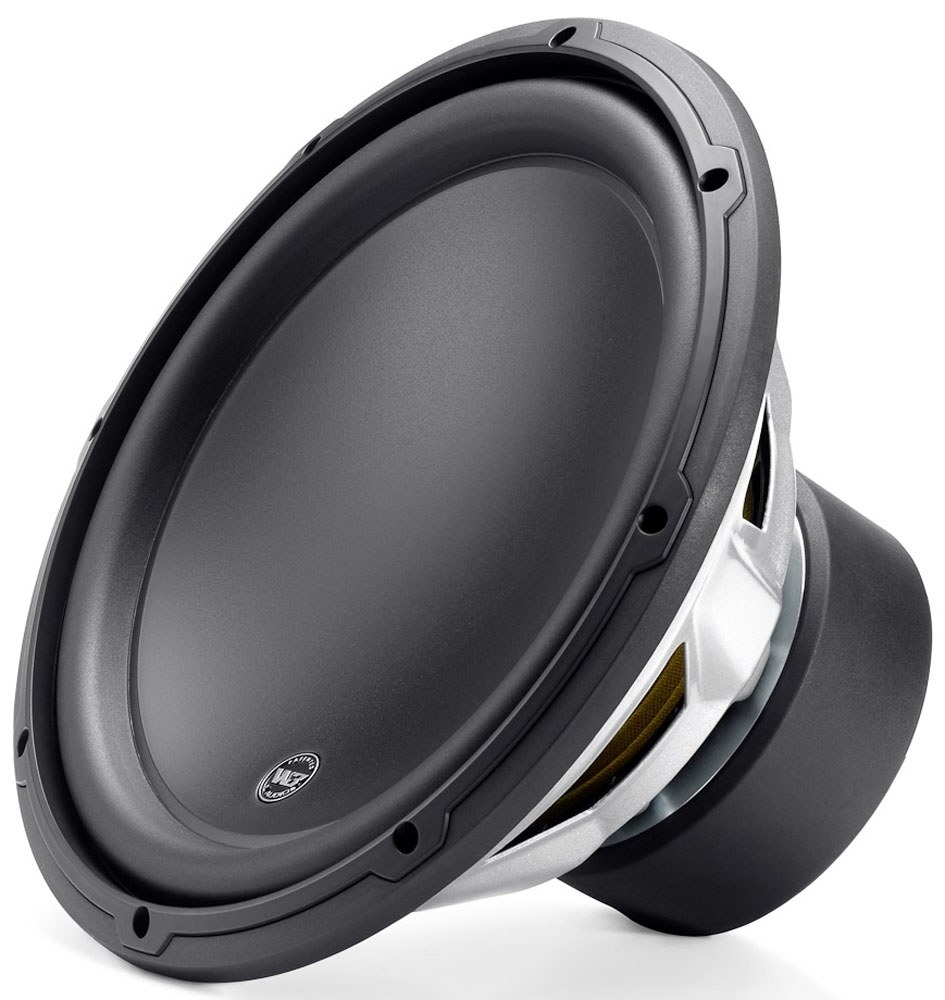

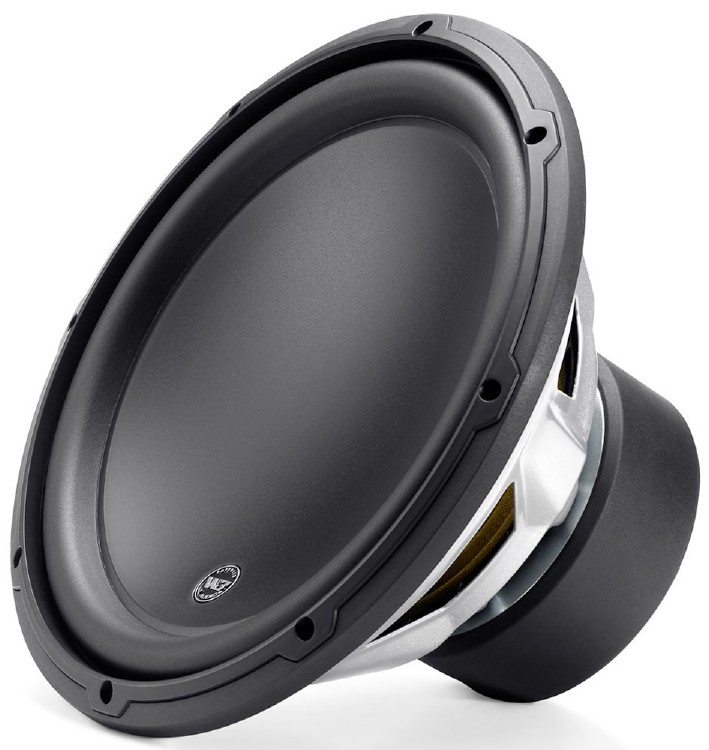

12W3V3-2

• W3v3 12-inch Subwoofer (500 W, 2 Ω)
• This powerhouse 12-inch driver delivers potent performance and world-class sound quality in medium power applications.
• Several exclusive JL Audio technologies and proprietary assembly techniques are applied to the 12W3v3 to enhance linearity and reliability.
• The 12W3v3-2 is best used with amplifier power in the 150W - 500W range and is optimized to operate in a compact 1.25 cu. ft. (35.4 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure.
• Detailed enclosure recommendations can be found in the "Specifications" tab.

• Continuous Power Handling (RMS)    500 W
• Recommended Amplifier Power (RMS)    150 - 500 W
• Nominal Impedance (Znom)    2 Ω

Physical Specifications

• Nominal Diameter    12.0 in / 300 mm
• Overall Diameter (A)    12.5 in / 318 mm
• Mounting Hole Diameter (B)    11.0625 in / 281 mm
• Bolt Hole Circle Diameter (C)    11.7 in / 297 mm
• Motor Outer Diameter (D)    5.5 in / 140 mm
• Mounting Depth (E)    6.65 in / 169 mm
• Driver Displacement    0.071 cu ft / 2.01 L
• Net Weight    14.50 lb / 6.58 kg

Sealed Enclosure Specifications

• Wall Thickness    0.75 in / 19 mm
• Front Baffle Thickness    0.75 in / 19 mm
• Volume (net int.)    1.250 cu ft / 35.4 L
• External Width (W)    23 in / 584 mm
• External Height (H)    14 in / 356 mm
• External Depth (D)    10 in / 254 mm
• F3    41.8 Hz
• Fc    50.4 Hz
• Qtc    0.96

Download  12W3v3-2 Product Manual
