12W1v3-4

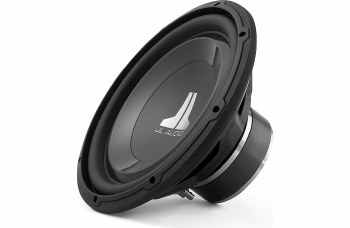

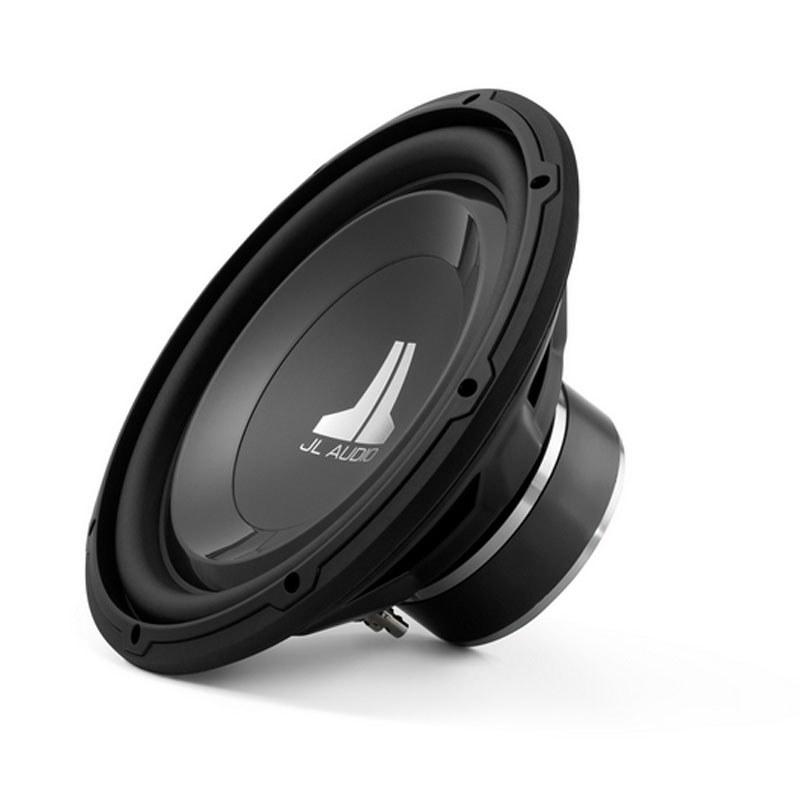

• W1v3 12-inch Subwoofer (300 W, 4 Ω)
• The 12W1v3 is a lightweight 12-inch driver with excellent performance capabilities at moderate power levels.

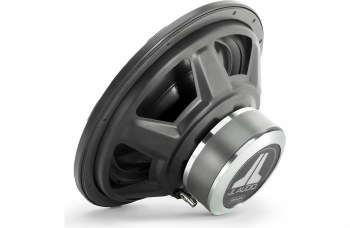

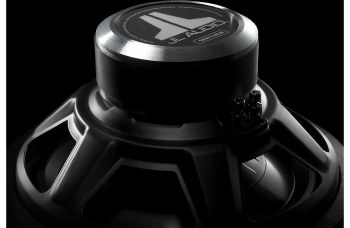

• It features moderate mounting depth with no pole-vent, so the rear of the motor structure can be placed directly against an enclosure boundary.
• Excellent excursion capability and linearity allow it to reproduce sub-bass with shocking extension and quality. Several of JL Audio's proprietary technologies enhance its performance and reliability.
• The 12W1v3-4 is best used with amplifier power in the 75W - 300W range and is optimized to operate in a compact 1.10 cu. ft. (31.5 l) sealed enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.

• Continuous Power Handling (RMS)    300 W
• Recommended Amplifier Power (RMS)    75 - 300 W
• Nominal Impedance (Znom)    4 Ω
• Nominal Diameter    12.0 in / 300 mm
• Overall Diameter (A)    12.5 in / 318 mm
• Mounting Hole Diameter (B)    11.0625 in / 281 mm
• Bolt Hole Circle Diameter (C)    11.7 in / 297 mm
• Motor Outer Diameter (D)    5.25 in / 133 mm
• Mounting Depth (E)    5.41 in / 137 mm
• Driver Displacement    0.052 cu ft / 1.47 L
• Net Weight    12.2 lb / 5.5 kg

Download  12W1v3-4 Product Manual
